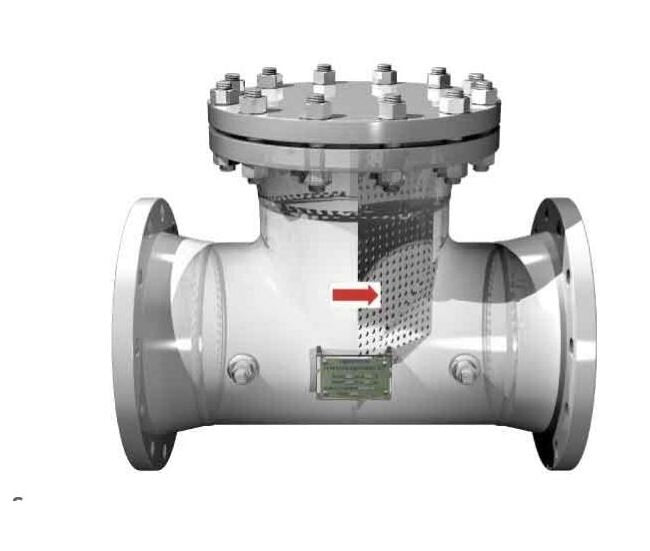

Sure Flow 5 Inch Fabricated Tee Type Strainer
Sure Flow 5 Inch Fabricated Tee Type Strainer
SKU:TEM-b6e710
Custom-built Sure Flow 5 Inch Strainer for pipeline protection and equipment durability. ASME compliant and ISO 9001:2008 certified.
Regular price
$729.99
Regular price
Sale price
$729.99
Unit price
per
Initiate Order
Sure Flow 5 Inch Fabricated Tee Type Strainer
$729.99
Quantity: 1
Claim Your Seller Account
Sure Flow 5 Inch Fabricated Tee Type Strainer
$729.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 5 Inch Fabricated Tee Type Strainer is a custom-built solution for efficiently removing foreign particles from pipelines, ensuring optimal protection for pumps, valves, and related equipment. Crafted from durable carbon or stainless steel materials, this strainer can also be customized with optional materials, end connections, and accessories to meet specific requirements. With dimensions compliant with American Society of Mechanical Engineers (ASME) standards and industry-certified under ISO 9001:2008, this strainer guarantees high performance and longevity. When ordering, specify your desired type, nominal pipe size, flange and pressure ratings, and corrosion conditions for tailored functionality. Trust in Sure Flow for reliable pipeline protection.
Product Specifications
Additional Information Additional Information

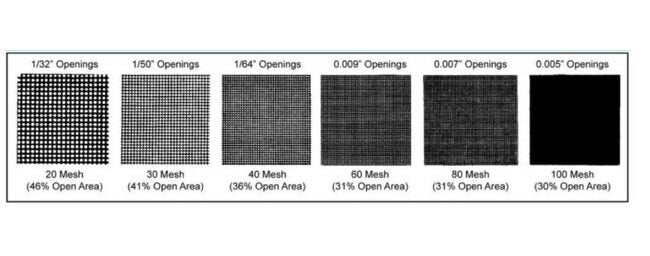

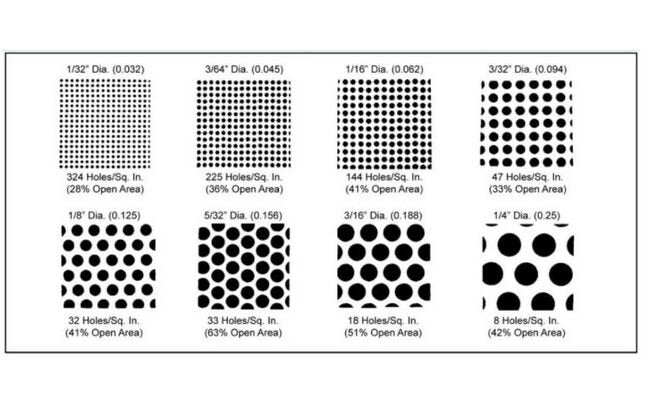

When ordering specify:Type - Straight Flow, Angled Flow, Angled ModifiedNominal Pipe SizeFlange Rating and FacingPressure Rating and FacingCorrosion Conditions, if any (type of materialPerforation (particle retention)

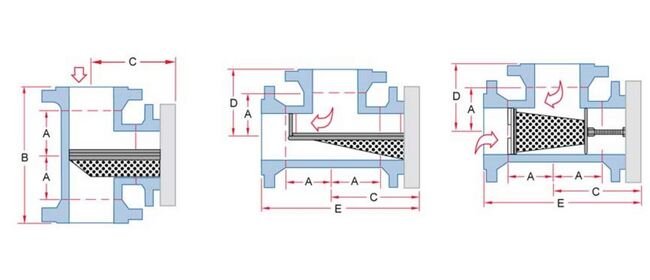

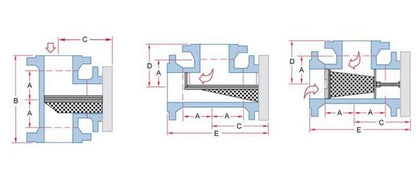

Dimensions Dimension A
4 7/8 in
Dimensions Dimension B For American Society Of Mechanical Engine
22 1/2 in
Dimensions Dimension C For American Society Of Mechanical Engine
14 1/2 in
Dimensions Dimension D For American Society Of Mechanical Engine
11 1/4 in
Dimensions Dimension E For American Society Of Mechanical Engine
25 3/4 in
Dimensions Pipe Size
5 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges and bodies are designed to meet Section 1 of American Standard Code for Pressure Piping, ASA B31.1.Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
