Sure Flow 6" Ductile Iron Swing Check Valve with Flanged End Connections
Sure Flow 6" Ductile Iron Swing Check Valve with Flanged End Connections
SKU:DOU-e398a7
Reliable and versatile 6" Ductile Iron Swing Check Valve for municipal and industrial use.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow 6" Ductile Iron Swing Check Valve with Flanged End Connections
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow 6" Ductile Iron Swing Check Valve with Flanged End Connections
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

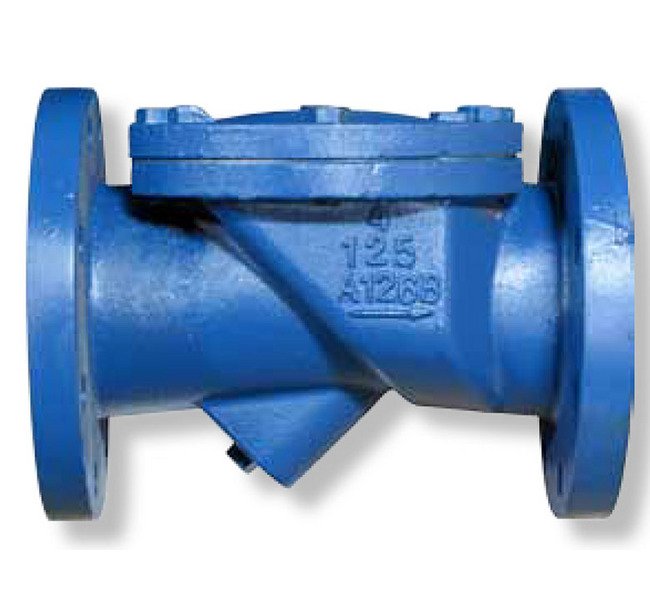

The Sure Flow CXF125IV 6 Inch Ductile Iron Elastic Swing Check Valve with Flanged End Connections is ideal for municipal and industrial applications. Featuring ASME Class 125 flanges and an epoxy-coated interior, this valve ensures reliable performance. The one-piece molded disc with steel reinforcement guarantees secure closure, allowing 100% uninterrupted flow when open. Easy maintenance allows for repairs without valve removal, and the optional backflow rod enables manual activation for added versatility.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Optional: A Backflow Rod can be installed and used for draining or pump priming. This option is a safe and effective way to manually activate the valve.
Construction Construction

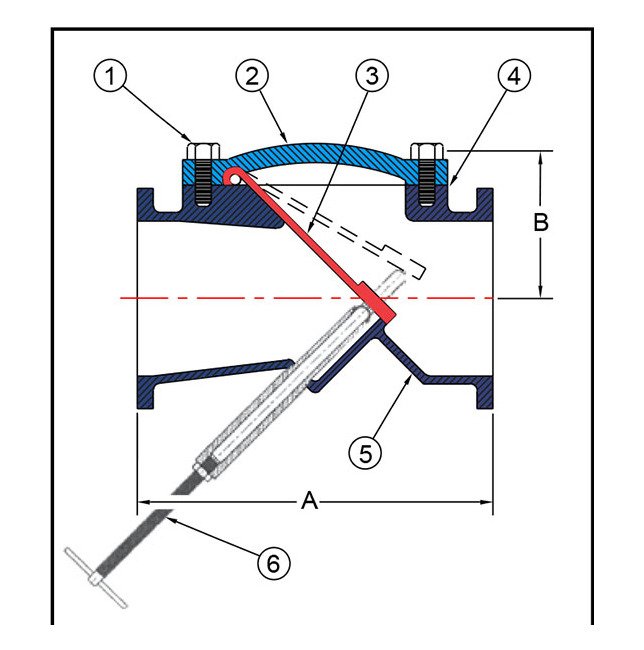

Item - 1Description - Cover BoltsMaterial - Alloy Steel SAE Grade 5Item - 2Description - CoverMaterial - A536 60-45-12 Ductile IronItem - 3Description - DiscMaterial - Buna-N with Steel & Fabric ReinforcementItem - 4Description - GasketMaterial - Lexide NK-511 (non-asbestos)Item - 5Description - Cast BodyMaterial - A536 60-45-12 Ductile IronItem - 6Description - Backflow Rod (Optional)Material - A582, B505 Brass
Dimensions Dimension A
15 in
Dimensions Dimension B
5 7/8 in
Dimensions Drain Size
1 1/4 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
115 lb
Dimensions Size
6 in
Dimensions Valve Flow Coefficient Cv
1,040
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
