Sure Flow 6 Inch 1480psi Receiver with Flange Connections
Sure Flow 6 Inch 1480psi Receiver with Flange Connections
SKU:BAR-e99857
Sure Flow 6 Inch Receiver for process pipelines, ASME standard, Carbon Steel/Stainless Steel/Alloy materials, 1480 psi @100°F.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
Sure Flow 6 Inch 1480psi Receiver with Flange Connections
$2,799.99
Quantity: 1
Claim Your Seller Account
Sure Flow 6 Inch 1480psi Receiver with Flange Connections
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

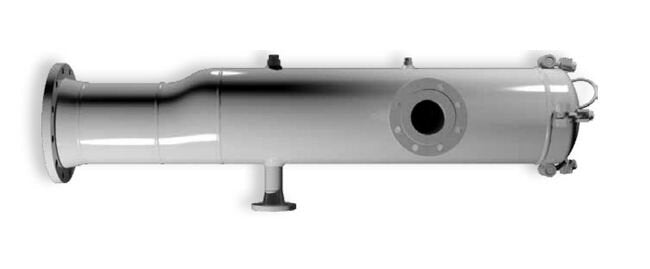

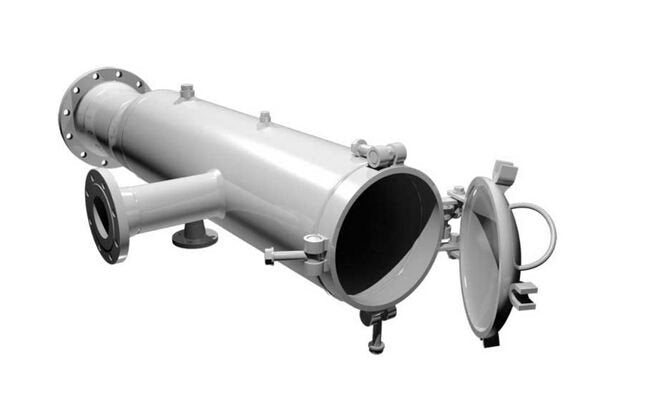

The Sure Flow 6 Inch Receiver is a reliable solution for process pipelines, designed to meet ASME standards and fabricated with Carbon Steel, Stainless Steel or Alloy materials. Its construction includes a Quick Open Cover, Pipe Plugs, Weld Neck Flanges, and more. Operating at 1480 psi and 100°F, it features standard industry elements like NPT Vent, Pressure Gauge, and Pig Signal Connections. Optional features include Stainless Steel or Alloy materials, ASME code stamps, and customizable fittings for various applications.
Product Specifications
Additional Information Additional Information

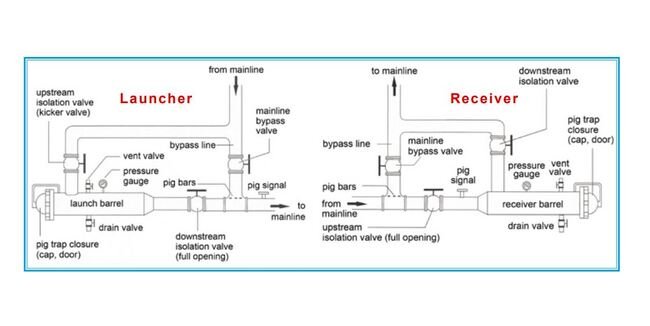

Pipeline Inspection Gauges or Pigs are tools that are inserted into and move through the pipeline, propelled by the flow of the fluid. Pigs perform many tasks including cleaning, inspection, coating the pipeline interior and separating batches of different fluids.A Receiver is located at the downstream end of the pipeline to remove the Pig from the pipeline.The design of the Launcher and Receiver will depend on the Pig and pipeline design conditions. Receivers can have many options. Sure Flow will custom design your Receiver to work with your conditions and requirements.Sure Flow offers simple barrel Receivers through to complete skid mounted units that include Actuated Valves, Instrumentation, Pig Signalers and Control Systems.
Construction Construction

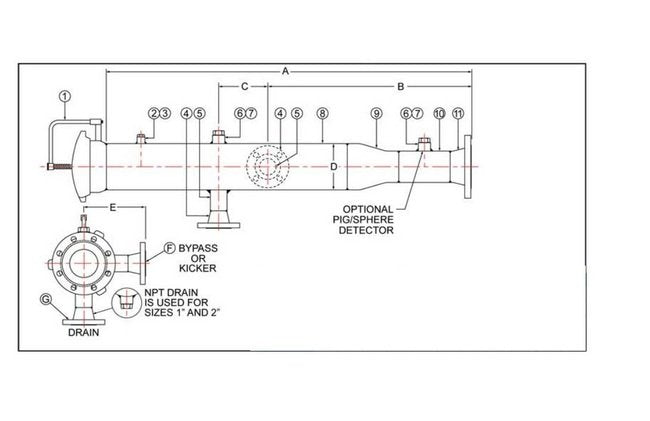

Item - 1Description - Quick Open CoverItem - 2Description - Pipe PlugItem - 3Description - Half CouplingItem - 4Description - Weld Neck FlangeItem - 5Description - PipeItem - 6Description - Pipe PlugItem - 7Description - Half CouplingItem - 8Description - PipeItem - 9Description - Concentric ReducerItem - 10Description - PipeItem - 11Description - Weld Neck Flange
Dimensions Dimension A
66 in
Dimensions Dimension B
31 in
Dimensions Dimension C
8 in
Dimensions Dimension D
8 5/8 in
Dimensions Dimension E
12 in
Dimensions Dimension F
3 in
Dimensions Dimension G
2 in
Dimensions Size
6 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings available Larger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1480 psi
Operating Pressures And Temperatures Pressure At 489 Degree Fahr
600 psi
Optional Features Optional Features
Sure Flow Receivers are manufactured to customer specifications with options including:Stainless Steel or Alloy Materials Design Codes available: ASME B31.3 or ASME B31.4 or CSA Z662 ASME "U" Code Stamp and National Board "NB" Mark Available Cam Lock Handles or Breakover Wrench Style Bolts Cover Davit Pressure Gauge / Switch Pig Signaler Support Legs or Skirt Weld Neck Flanged Connections Alternate Elastomer Seals to suit various applications Lifting Lugs for Installation Additional Ancillary Connections Special Coatings
Specifications Material
Carbon Steel
Specifications Prefix Size
0600
Standard Features Standard Features
Sure Flow Receivers are manufactured to customer specifications with standard features including: Carbon Steel Body NPT Vent, Drain, Pressure Gauge, Pig Signal Connections Quick Open T-Bolt Closure with Hinge Designed to ASME Section VIII Div 1 Designed for Operating Pressure of 285 psi at 100 ºF
