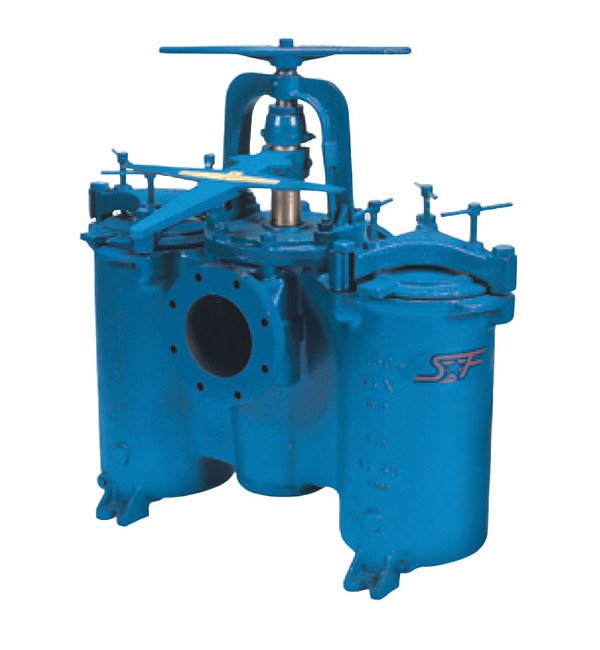

Sure Flow 6 Inch Bronze Duplex Strainer

Name: Sure Flow 6 Inch Bronze Duplex Strainer
Brand: Sure Flow Equipment, Inc.
SKU: DUP-8bcc30
Price: 399.99 USD
Availability: OutOfStock

SKU:DUP-8bcc30

High-quality Sure Flow 6 Inch Bronze Duplex Strainer for efficient flow management and easy maintenance. Rugged design, compliant with industry standards.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow 6 Inch Bronze Duplex Strainer is a reliable and durable solution for industries worldwide. This high-quality strainer features a pressure-rated plug valve with integral straining baskets, offering easy maintenance and efficient flow management. With a swift 30-second switching operation between baskets, quick-opening covers, and NPT drain taps, this strainer ensures seamless operation and hassle-free maintenance. Ideal for various applications, the Sure Flow Duplex Strainer is a top choice for its rugged design and ease of use, meeting the highest industry standards and certifications.

Product Specifications

Additional Information Additional Information

Switching the flow from one basket to the other is accomplished by moving the operating handle through a 90 degree arc. The design is such that it is impossible for this operation to stop the flow because of the unique port design in the diverter plug. The entire switching operation takes less than 30 seconds. No tools are needed. The plug is automatically positioned each time in exactly the right spot by integral stops.Before operating the handle a manual, integral lifting jack, built into the strainer is used to lift the diverter plug off of its seat. After the switching operation the lifting jack is used to reseat the plug. The lifting jack is specially designed to lift and seat the plug easily, even under high pressures. A built-in stop limits the distance the diverter plug can be raised. This minimizes the possibility of material bypassing the plug while it is rotated. It also prevents debris from building up under the plug and making it difficult to reseat.Other important features of the Sure Flow Duplex Basket Strainers design include quick opening, swing away yoke design covers. No tools are required to remove the covers for quick and easy access to the strainer baskets, and they go back on just as fast as they came off.Draining of the basket chambers is simplified with the standard NPT drain taps. All sizes are provided with mounting legs to bolt the strainer to the floor for a rock solid installation.The Sure Flow Duplex Basket Strainer is your best choice for most applications. Its rugged design and ease of operation have made it the duplex strainer of choice around the world in hundreds of different industries.

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Manufacturer reserves the right to modify dimensions, materials, or design. Please contact Sure Flow Equipment Inc. for certifications.

Specifications 5 And 6 Inch In Rating At 100 Degree Fahrenheit F

200 psig

Specifications American Society Of Mechanical Engineers Asme Cl1

0600 psig

Specifications Body And Cartridge Material

Bronze (BZ)

Specifications Connection Type

Flanged CL.150

Specifications Plug Material

Bronze (BZ) | Iron (CI)

Specifications Prefix Size

0600

Specifications Screen Opening

156 in

Specifications Seat Material

Buna N

Specifications Size

6 in

Specifications Valve Flow Coefficient Cv

420

Sure Flow 6 Inch Bronze Duplex Strainer
