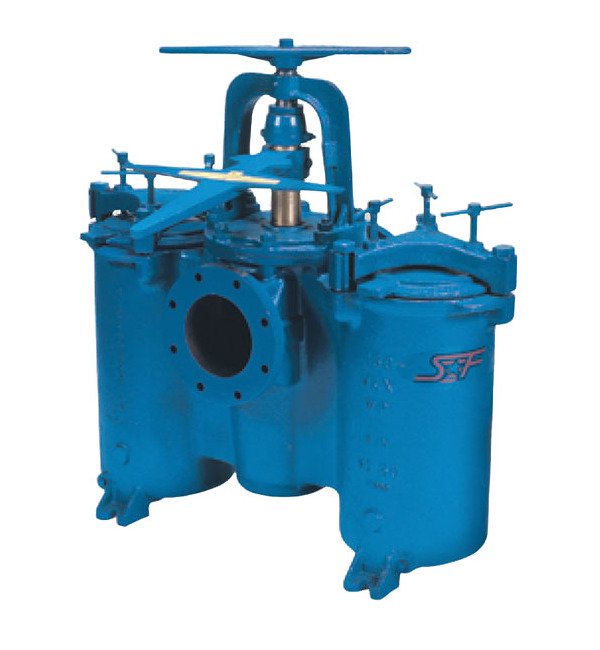

Sure Flow 6 Inch Iron Duplex Strainer
Sure Flow 6 Inch Iron Duplex Strainer
SKU:DUP-5be500
Trust the Sure Flow 6 Inch Iron Duplex Strainer for reliable, tool-free basket switching and efficient maintenance in various industries.
Regular price
$389.99
Regular price
Sale price
$389.99
Unit price
per
Initiate Order
Sure Flow 6 Inch Iron Duplex Strainer
$389.99
Quantity: 1
Claim Your Seller Account
Sure Flow 6 Inch Iron Duplex Strainer
$389.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 6 Inch Iron Duplex Strainer is a reliable, cost-effective solution suitable for various applications worldwide. With a sturdy iron construction, flanged CL.125 connection, and ASME CL.150 rating at 150°F, it offers a durable and high-performance straining mechanism. The innovative design allows for quick basket switching in under 30 seconds without the need for tools, ensuring uninterrupted flow. Featuring a swing away yoke design cover and NPT drain taps, maintenance and draining are simplified for optimal usability. Trust the Sure Flow Duplex Strainer for efficient operation across diverse industries.
Product Specifications
Additional Information Additional Information
Switching the flow from one basket to the other is accomplished by moving the operating handle through a 90 degree arc. The design is such that it is impossible for this operation to stop the flow because of the unique port design in the diverter plug. The entire switching operation takes less than 30 seconds. No tools are needed. The plug is automatically positioned each time in exactly the right spot by integral stops.Before operating the handle a manual, integral lifting jack, built into the strainer is used to lift the diverter plug off of its seat. After the switching operation the lifting jack is used to reseat the plug. The lifting jack is specially designed to lift and seat the plug easily, even under high pressures. A built-in stop limits the distance the diverter plug can be raised. This minimizes the possibility of material bypassing the plug while it is rotated. It also prevents debris from building up under the plug and making it difficult to reseat.Other important features of the Sure Flow Duplex Basket Strainers design include quick opening, swing away yoke design covers. No tools are required to remove the covers for quick and easy access to the strainer baskets, and they go back on just as fast as they came off.Draining of the basket chambers is simplified with the standard NPT drain taps. All sizes are provided with mounting legs to bolt the strainer to the floor for a rock solid installation.The Sure Flow Duplex Basket Strainer is your best choice for most applications. Its rugged design and ease of operation have made it the duplex strainer of choice around the world in hundreds of different industries.
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Please contact Sure Flow Equipment Inc. for certifications.
Specifications 5 And 6 Inch In Rating At 100 Degree Fahrenheit F
200 psig
Specifications American Society Of Mechanical Engineers Asme Cl1
0600 psig
Specifications Body And Cartridge Material
Iron (CI)
Specifications Connection Type
Flanged CL.125
Specifications Plug Material
Bronze (BZ) | Iron (CI)
Specifications Prefix Size
0600
Specifications Screen Opening
156 in
Specifications Seat Material
Buna N
Specifications Size
6 in
Specifications Valve Flow Coefficient Cv
420
