Sure Flow 6 Inch Tee Type Fabricated Strainer
Sure Flow 6 Inch Tee Type Fabricated Strainer
SKU:TEM-663fd3
Premium Sure Flow 6in Tee Type Strainer for pipeline protection and equipment longevity.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow 6 Inch Tee Type Fabricated Strainer
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow 6 Inch Tee Type Fabricated Strainer
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

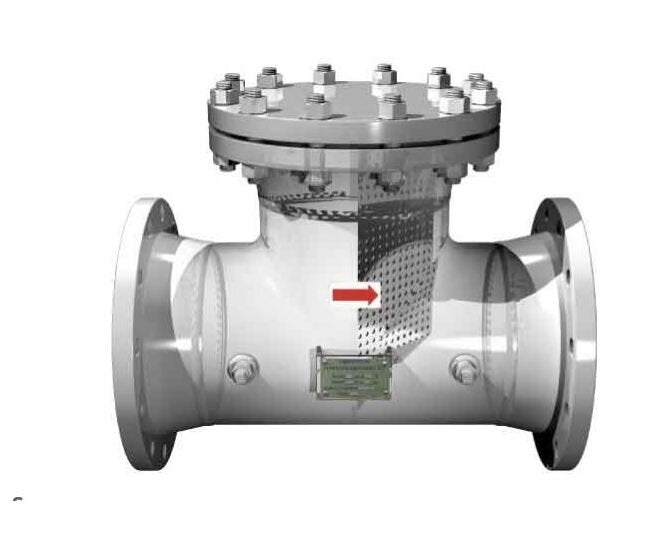

The Sure Flow 6 Inch Tee Type Fabricated Strainer is a custom-designed, compact strainer engineered to effectively remove foreign particles from pipelines, ensuring optimal protection for pumps, valves, and related equipment. Constructed from premium carbon or stainless steel, this strainer can also be fabricated using chrome moly for specific requirements. With customizable specifications, end connections, and optional accessories, this strainer offers versatile solutions for varying industrial needs. Manufactured to meet ISO 9001:2008 standards by Intertek, this strainer complies with the American Standard Code for Pressure Piping (ASA B31.1). Ensure pipeline integrity and equipment longevity with the Sure Flow Tee Strainer.
Product Specifications
Additional Information Additional Information

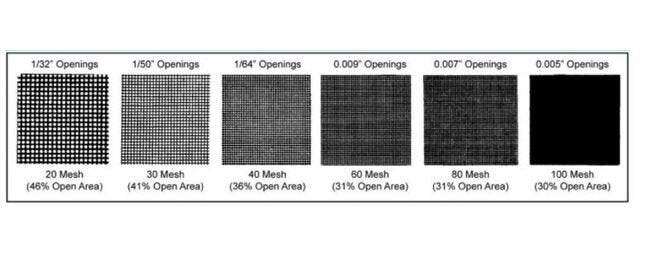

When ordering specify:Type - Straight Flow, Angled Flow, Angled ModifiedNominal Pipe SizeFlange Rating and FacingPressure Rating and FacingCorrosion Conditions, if any (type of materialPerforation (particle retention)

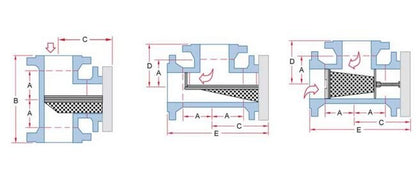

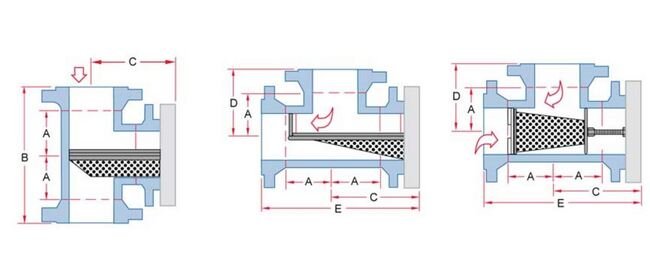

Dimensions Dimension A
5 5/8 in
Dimensions Dimension B For American Society Of Mechanical Engine
25 1/4 in
Dimensions Dimension C For American Society Of Mechanical Engine
16 1/4 in
Dimensions Dimension D For American Society Of Mechanical Engine
12 5/8 in
Dimensions Dimension E For American Society Of Mechanical Engine
28 7/8 in
Dimensions Pipe Size
6 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges and bodies are designed to meet Section 1 of American Standard Code for Pressure Piping, ASA B31.1.Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
