Experience exceptional flow control with the Sure Flow 8-inch Ductile Iron Elastic Swing Foot Valve. Built for municipal and industrial use, this valve boasts an epoxy-coated internal body, steel-reinforced disc insert, and ASME Class 125 flanges. The one-piece disc hinge allows for easy repairs without valve removal, ensuring continuous flow application suitability. Perfect for horizontal or vertical pipelines, this valve guarantees 100% uninterrupted flow when open, meeting the highest industry standards like ASME Class 125 and ISO 9001:2008.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
The one-piece disc hinge and flapper can be repaired without removal of the valve from the line. The Elastic Swing Foot Valve is designed for continuous flow applications and is not recommended for reciprocating pumps. The Elastic Swing Foot Valve can be installed in a vertical or horizontal pipeline.
Construction Construction

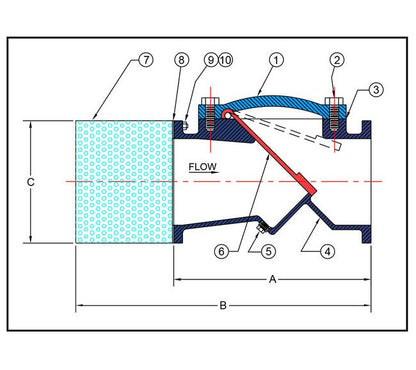

Item - 1Description - CoverItem - 2Description - Cover BoltsItem - 3Description - GasketItem - 4Description - Cast BodyItem - 5Description - DrainItem - 6Description - DiscItem - 7Description - Screen AssemblyItem - 8Description - Plate FlangeItem - 9Description - StudsItem - 10Description - Nuts
Dimensions Dimension A
19 1/2 in
Dimensions Dimension B
25 in
Dimensions Dimension C
13 3/4 in
Dimensions Drain Size
1 1/2 in
Dimensions Prefix Size
0800
Dimensions Shipping Weight
300 lb
Dimensions Size
8 in
Dimensions Valve Flow Coefficient Cv
1,520
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve comes standard with 1/8" pert. Stainless Steel Screen. Options are available.Horizontal Flow: Valve must be installed with cover on top to ensure proper operation.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
Specifications Orientation
Horizontal | Vertical
