Sure Flow 8-Inch Barred Tee with Buttweld End Connections
Sure Flow 8-Inch Barred Tee with Buttweld End Connections
SKU:BAR-992a4f
Top-quality 8-inch Barred Tee with Buttweld End Connections for pipeline safety and efficiency.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow 8-Inch Barred Tee with Buttweld End Connections
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow 8-Inch Barred Tee with Buttweld End Connections
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 8-Inch Barred Tee with Buttweld End Connections is a top-of-the-line solution designed to meet the demands of diverse projects. Crafted from high-quality Alloy, Carbon Steel, or Stainless Steel materials, this barred tee guarantees exceptional performance under rigorous conditions. Operating at a pressure of 740 psi and suitable for various liquids and gas at 100°F, this ASME Class 150-2500+ compliant tee offers reliability and longevity. Its meticulous construction ensures bar sections welded to the branch prevent damage and ensure safe pig passage in pipeline systems. With optional flanged connections available, this tee is versatile and dependable for your specific needs.
Product Specifications
Additional Information Additional Information

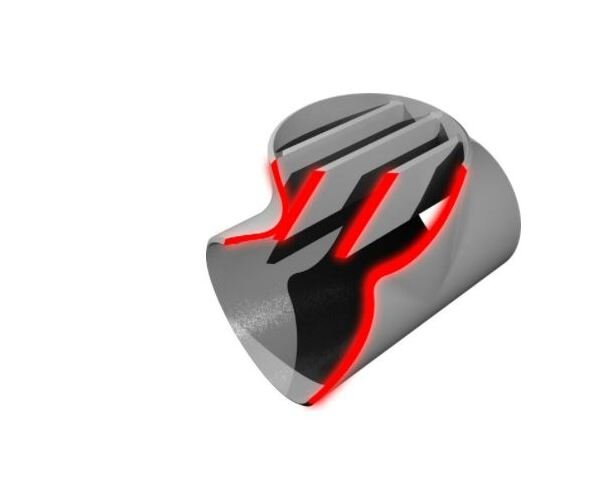

Custom fitted bar sections are welded to the branch of the buttweld Tee. The bars are added to ensure the Pig passes by the branch opening. Bar spacing is designed to prevent damage to the functional elements of the Pig.Buttweld End Connections are standard. Optional Flanged Connections in raised face or RTJ, as well as extended pup-pieces, are available. Barred Tees are used in a pipeline Launcher/Receiver system and at any branch in the pipeline to ensure safe passage of the Pig.

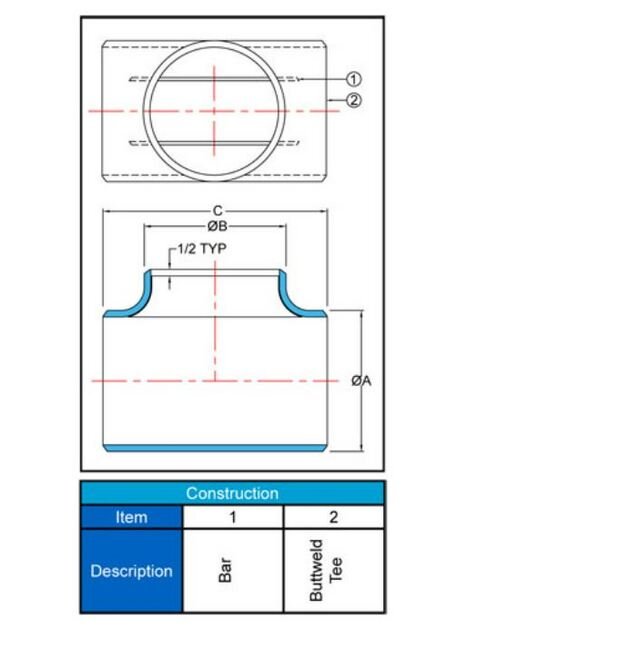

Construction Construction
Item - 1Description - BarItem - 2Description - Buttweld Tee
Dimensions Dimension C
14 in
Dimensions Size
8 in
Dimensions Thickness At 2 Inch In Branch Size And 2 Bar
1/4 in
Dimensions Thickness At 3 Inch In Branch Size And 2 Bar
1/4 in
Dimensions Thickness At 4 Inch In Branch Size And 2 Bar
1/4 in
Dimensions Thickness At 6 Inch In Branch Size And 3 Bar
1/4 in
Dimensions Thickness At 8 Inch In Branch Size And 3 Bar
1/4 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings available Larger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
740 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Material
Alloy | Carbon Steel | Stainless Steel
Specifications Prefix Size
0800
