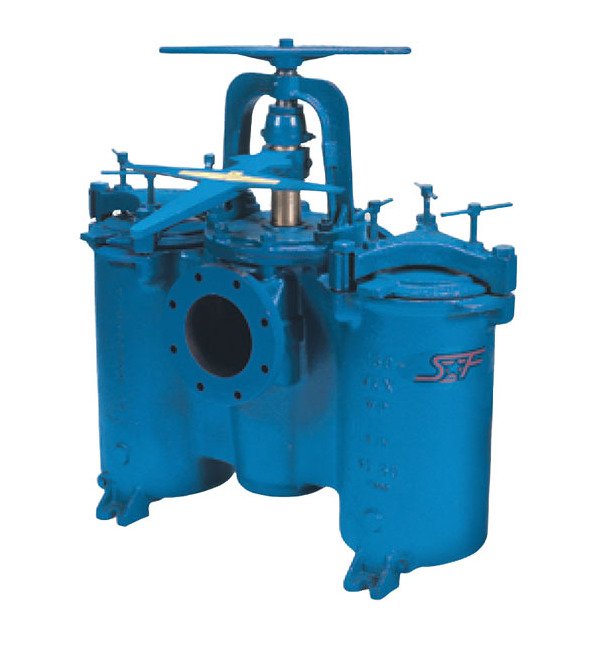

Sure Flow 8 Inch Carbon Steel Duplex Strainer
Sure Flow 8 Inch Carbon Steel Duplex Strainer
SKU:DUP-ef35bd
Reliable Sure Flow 8 Inch Carbon Steel Duplex Strainer for efficient industrial filtration. Certified to ISO 9001:2008 standards.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Sure Flow 8 Inch Carbon Steel Duplex Strainer
$599.99
Quantity: 1
Claim Your Seller Account
Sure Flow 8 Inch Carbon Steel Duplex Strainer
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 8 Inch Carbon Steel Duplex Strainer is a reliable, high-quality solution for industrial applications. This pressure-rated plug valve features integral straining baskets, offering efficient filtration and easy maintenance. Switching between baskets is effortless and tool-free, ensuring uninterrupted flow. With a sturdy design, quick access covers, and NPT drain taps, this duplex strainer simplifies maintenance and installation. Certified to ISO 9001:2008 standards, it meets quality requirements for diverse industries.
Product Specifications
Additional Information Additional Information
Switching the flow from one basket to the other is accomplished by moving the operating handle through a 90 degree arc. The design is such that it is impossible for this operation to stop the flow because of the unique port design in the diverter plug. The entire switching operation takes less than 30 seconds. No tools are needed. The plug is automatically positioned each time in exactly the right spot by integral stops.Before operating the handle a manual, integral lifting jack, built into the strainer is used to lift the diverter plug off of its seat. After the switching operation the lifting jack is used to reseat the plug. The lifting jack is specially designed to lift and seat the plug easily, even under high pressures. A built-in stop limits the distance the diverter plug can be raised. This minimizes the possibility of material bypassing the plug while it is rotated. It also prevents debris from building up under the plug and making it difficult to reseat.Other important features of the Sure Flow Duplex Basket Strainers design include quick opening, swing away yoke design covers. No tools are required to remove the covers for quick and easy access to the strainer baskets, and they go back on just as fast as they came off.Draining of the basket chambers is simplified with the standard NPT drain taps. All sizes are provided with mounting legs to bolt the strainer to the floor for a rock solid installation.The Sure Flow Duplex Basket Strainer is your best choice for most applications. Its rugged design and ease of operation have made it the duplex strainer of choice around the world in hundreds of different industries.
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Please contact Sure Flow Equipment Inc. for certifications.
Specifications 8 Inch In Rating At 100 Degree Fahrenheit F Tempe
150 psig
Specifications American Society Of Mechanical Engineers Asme Cl1
0800 psig
Specifications Body And Cartridge Material
Carbon Steel (CS)
Specifications Connection Type
Flanged CL.150
Specifications Plug Material
Bronze (BZ) | Stainless Steel (SS)
Specifications Prefix Size
0800
Specifications Screen Opening
156 in
Specifications Seat Material
Buna N
Specifications Size
8 in
Specifications Valve Flow Coefficient Cv
900
