Sure Flow 8 Inch Fabricated Tee Type Strainer
Sure Flow 8 Inch Fabricated Tee Type Strainer
SKU:TEM-109166
Ensure pipeline purity with the Sure Flow 8 Inch Tee Strainer for ultimate equipment protection and efficiency.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow 8 Inch Fabricated Tee Type Strainer
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow 8 Inch Fabricated Tee Type Strainer
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

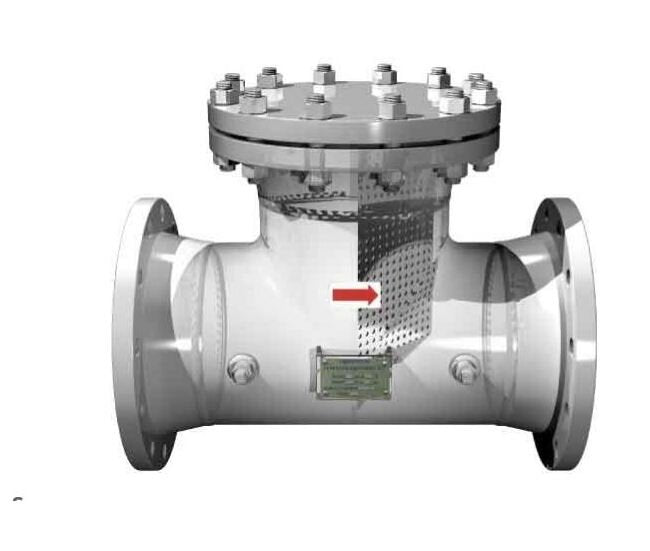

The Sure Flow 8 Inch Fabricated Tee Type Strainer is a custom-designed, compact strainer specifically engineered to efficiently remove foreign particles from pipelines, ensuring optimal protection for pumps, valves, and related equipment. This strainer, fabricated to your exact specifications, is constructed from high-quality carbon or stainless steel material, with the option for chrome moly assemblies and various end connections. Its dimensions conform to ASME Class standards, offering a range of sizes to meet diverse industrial needs. When ordering, specify the type, nominal pipe size, flange rating, pressure rating, corrosion conditions, and perforation requirements. The manufacturer adheres to the American Standard Code for Pressure Piping and ISO 9001:2008 (Intertek) standards, ensuring top-notch quality and reliability.
Product Specifications
Additional Information Additional Information

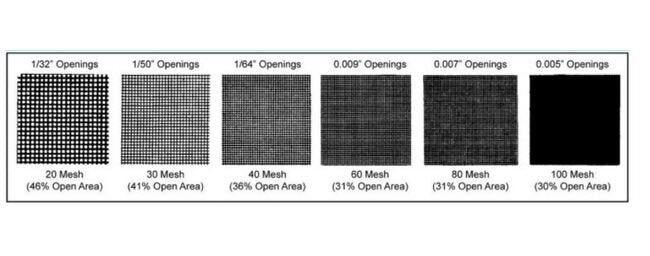

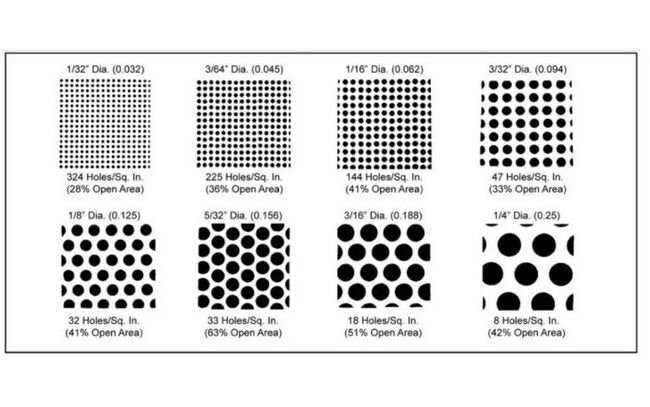

When ordering specify:Type - Straight Flow, Angled Flow, Angled ModifiedNominal Pipe SizeFlange Rating and FacingPressure Rating and FacingCorrosion Conditions, if any (type of materialPerforation (particle retention)

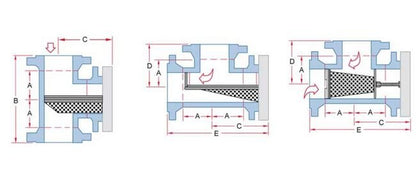

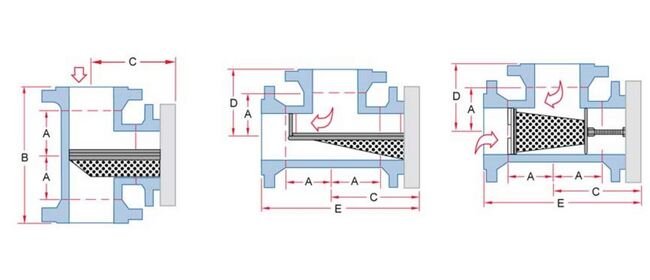

Dimensions Dimension A
7 in
Dimensions Dimension B For American Society Of Mechanical Engine
31 1/4 in
Dimensions Dimension C For American Society Of Mechanical Engine
19 5/8 in
Dimensions Dimension D For American Society Of Mechanical Engine
15 5/8 in
Dimensions Dimension E For American Society Of Mechanical Engine
35 1/4 in
Dimensions Pipe Size
8 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges and bodies are designed to meet Section 1 of American Standard Code for Pressure Piping, ASA B31.1.Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
