Sure Flow 8 Inch Stainless Steel Wafer Dual Disc Check Valve
Sure Flow 8 Inch Stainless Steel Wafer Dual Disc Check Valve
SKU:DOU-cd2718
Sure Flow 8in Stainless Steel Dual Disc Check Valve for reliable backflow prevention.
Regular price
$589.99
Regular price
Sale price
$589.99
Unit price
per
Initiate Order
Sure Flow 8 Inch Stainless Steel Wafer Dual Disc Check Valve
$589.99
Quantity: 1
Claim Your Seller Account
Sure Flow 8 Inch Stainless Steel Wafer Dual Disc Check Valve
$589.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

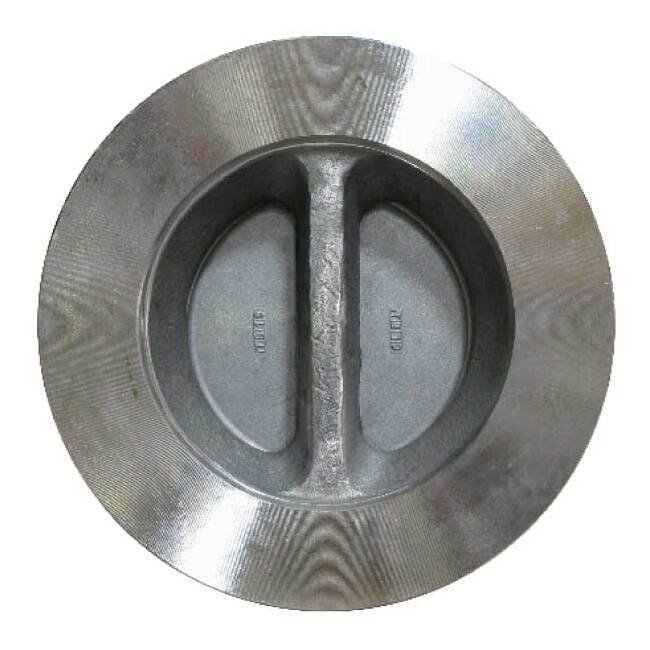

The FE150SS Series Retainerless Stainless Steel Wafer Double Door Dual Disc Check Valve by Sure Flow offers reliable backflow prevention in industrial settings. This valve, designed with high-quality materials and precision engineering, ensures secure sealing and efficient fluid control. Compliant with ISO 9001:2008 standards, it features a durable stainless steel construction and interchangeable parts for easy maintenance. The double door design enhances flow efficiency, making it ideal for a wide range of applications.
Product Specifications

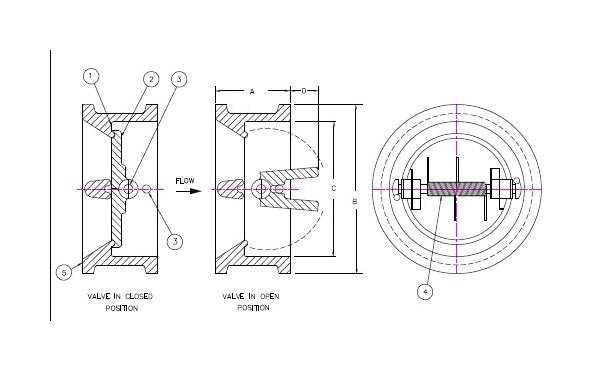

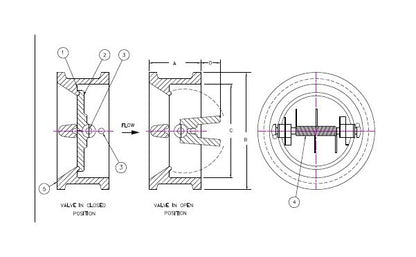

Dimensions Dimension A
5 in
Dimensions Dimension B
11 in
Dimensions Dimension C
8 5/8 in
Dimensions Dimension D
2 1/16 in
Dimensions Size
8 in
Dimensions Weight
53 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door | Dual Disc | Wafer
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
