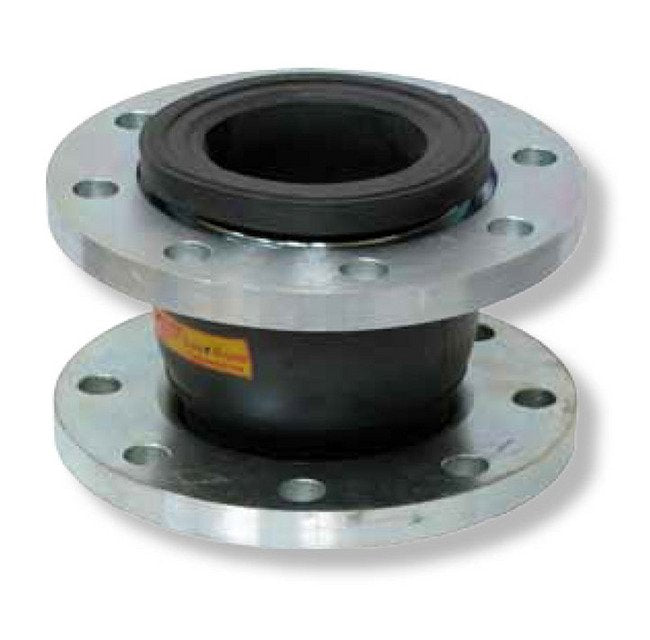

Sure Flow AMS 14" Single-Sphere Connector Fitting with Class 150 Floating Flange

Name: Sure Flow AMS 14" Single-Sphere Connector Fitting with Class 150 Floating Flange
Brand: Sure Flow Equipment, Inc.
SKU: EXP-345bf1
Price: 349.99 USD
Availability: OutOfStock

SKU:EXP-345bf1

Durable and precise Sure Flow AMS 14" Single-Sphere Connector Fitting meets high industry standards and offers exceptional performance.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

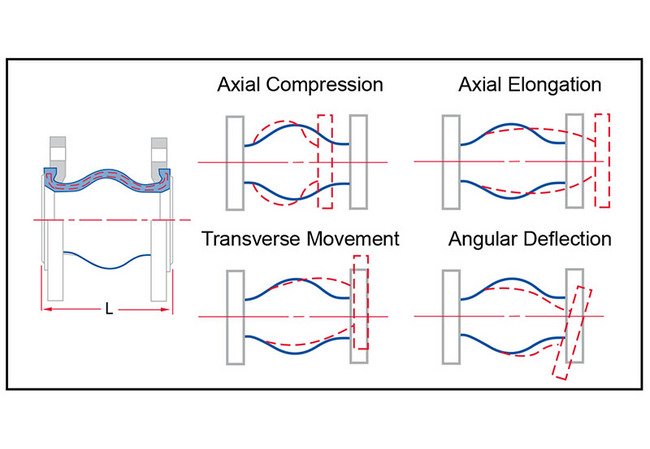

The Sure Flow AMS Series 14-inch Single-Sphere Connector Fitting with Class 150 Floating Flange is designed for precision and durability. This expansion joint boasts impressive specifications with axial compression and elongation capabilities, transverse movement tolerance, and angular deflection features. With materials meeting high industry standards like ISO 9001:2008, the construction includes CS Zinc Plated flanges, carbon steel wire strand, special synthetic rubber elastomer, and synthetic fiber reinforcing fabric. Trust in Sure Flow for superior quality and performance.

Product Specifications

Construction Construction

Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

Dimensions Angular Deflection

15 Âº

Dimensions Axial Compression

3/4 in

Dimensions Axial Elongation

1/2 in

Dimensions Dimension L

8 in

Dimensions Prefix Size

1400

Dimensions Shipping Weight

120 lb

Dimensions Size

14 in

Dimensions Transverse Movement Tolerance

3/4 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.

Operating Pressures And Temperatures Operating Pressure

90 psig

Operating Pressures And Temperatures Temperature

-10 to 115 ÂºC | 14 to 240 ÂºF

Operating Pressures And Temperatures Vacuum Rating

26 inHg

Specifications Series

AMS
