Sure Flow AMS 16-Inch Single-Sphere Connector with Class 150 Floating Flange

Sure Flow AMS 16-Inch Single-Sphere Connector with Class 150 Floating Flange

EXP-f1cc05

Sure Flow AMS 16-Inch Single-Sphere Connector Fitting for precise movement control in industrial applications.

$299.99
$299.99
Sale

Initiate Order

Sure Flow AMS 16-Inch Single-Sphere Connector with Class 150 Floating Flange

Sure Flow AMS 16-Inch Single-Sphere Connector with Class 150 Floating Flange

$299.99

Quantity: 1

Claim Your Seller Account

Sure Flow AMS 16-Inch Single-Sphere Connector with Class 150 Floating Flange

Sure Flow AMS 16-Inch Single-Sphere Connector with Class 150 Floating Flange

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

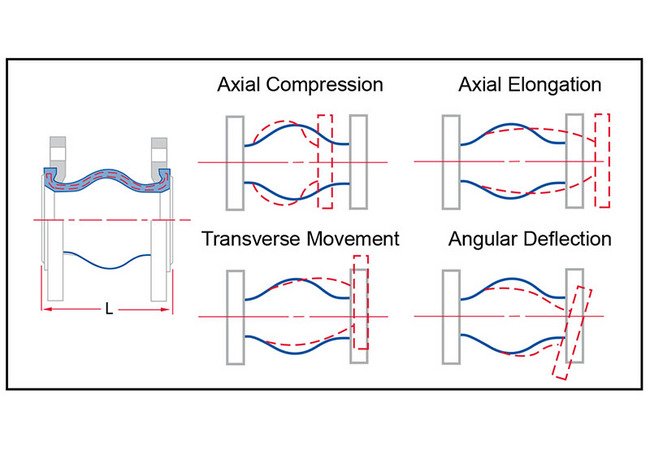

The Sure Flow AMS Series 16-Inch Single-Sphere Connector Fitting with Class 150 Floating Flange is designed for precise axial compression, elongation, and angular deflection, accommodating transverse movement up to 3/4 inch. With a durable construction incorporating CS Zinc Plated flanges, carbon steel wire, special synthetic rubber, and synthetic fiber reinforcement, this connector ensures reliability in demanding industrial applications. Operating at pressures up to 45 psig and temperatures between -10 to 115°C, it meets ISO 9001:2008 standards for quality assurance.

Product Specifications

Construction Construction
Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)
Dimensions Angular Deflection
15 º
Dimensions Axial Compression
3/4 in
Dimensions Axial Elongation
1/2 in
Dimensions Dimension L
8 in
Dimensions Prefix Size
1600
Dimensions Shipping Weight
140 lb
Dimensions Size
16 in
Dimensions Transverse Movement Tolerance
3/4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
45 psig
Operating Pressures And Temperatures Temperature
-10 to 115 ºC | 14 to 240 ºF
Operating Pressures And Temperatures Vacuum Rating
26 inHg
Specifications Series
AMS
