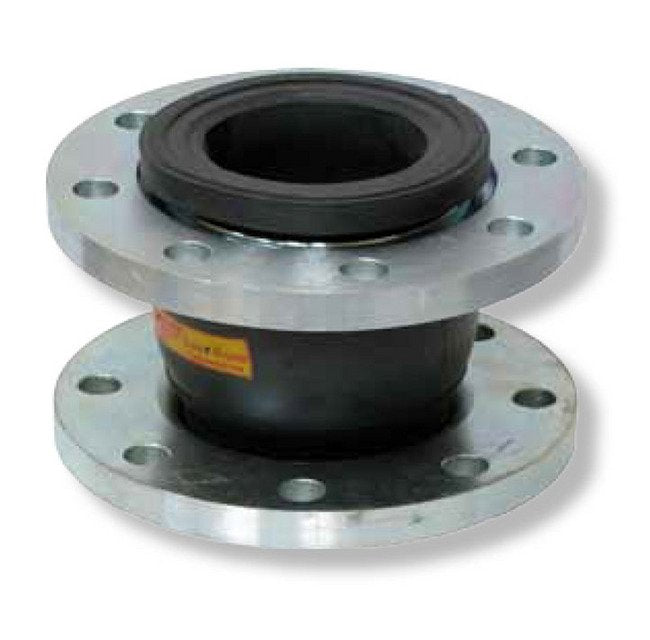

Sure Flow AMS 18in Single-Sphere Connector Fitting with Class 150 Floating Flange
Sure Flow AMS 18in Single-Sphere Connector Fitting with Class 150 Floating Flange
SKU:EXP-9b894c
Sure Flow AMS 18in Single-Sphere Connector Fitting: Superior quality for expansion joints & flexible connectors.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow AMS 18in Single-Sphere Connector Fitting with Class 150 Floating Flange
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow AMS 18in Single-Sphere Connector Fitting with Class 150 Floating Flange
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow AMS Series 18-inch single-sphere connector fitting with Class 150 floating flange is designed for optimal performance and durability. Constructed with high-quality materials including CS Zinc Plated flanges, carbon steel wire, special synthetic rubber elastomer, and synthetic fiber reinforcing fabric, this fitting offers superior reliability in expansion joint and flexible connector applications. Operating at pressures up to 45 psig and temperatures ranging from -10 to 115°C, it provides flexibility with axial compression, elongation, and transverse movement tolerance. Sure Flow ensures adherence to ISO 9001:2008 standards, reflecting a commitment to quality and precision engineering.
Product Specifications
Construction Construction
Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

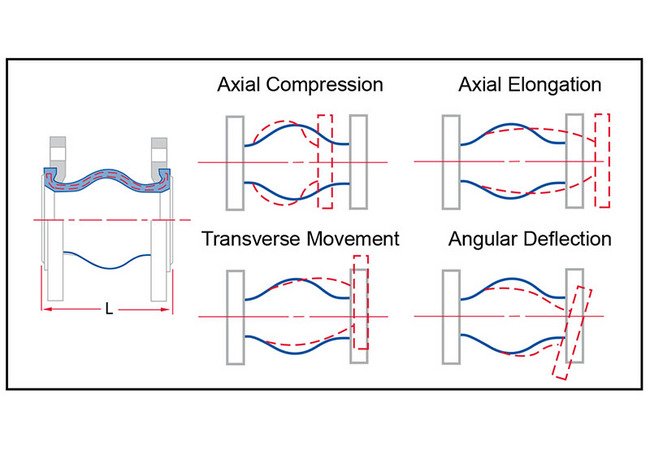

Dimensions Angular Deflection
15 º
Dimensions Axial Compression
3/4 in
Dimensions Axial Elongation
1/2 in
Dimensions Dimension L
8 in
Dimensions Prefix Size
1800
Dimensions Shipping Weight
145 lb
Dimensions Size
18 in
Dimensions Transverse Movement Tolerance
3/4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
45 psig
Operating Pressures And Temperatures Temperature
-10 to 115 ºC | 14 to 240 ºF
Operating Pressures And Temperatures Vacuum Rating
26 inHg
Specifications Series
AMS
