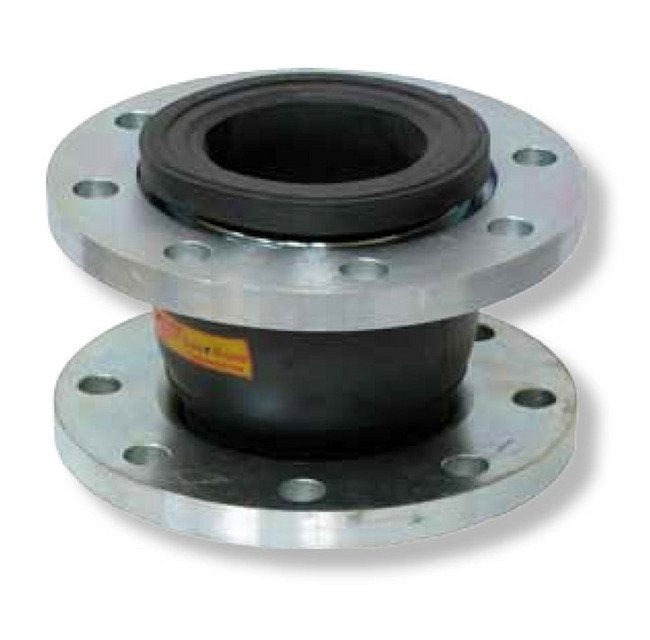

Sure Flow AMS 24" Single-Sphere Connector with Class 150 Floating Flange
Sure Flow AMS 24" Single-Sphere Connector with Class 150 Floating Flange
SKU:EXP-f09609
Sure Flow AMS Series 24" Single-Sphere Connector Fitting - High-performance, compliant with ISO 9001:2008 standards.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow AMS 24" Single-Sphere Connector with Class 150 Floating Flange
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow AMS 24" Single-Sphere Connector with Class 150 Floating Flange
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow AMS Series 24-inch Single-Sphere Connector Fitting with Class 150 Floating Flange is a premium-quality expansion joint designed for optimal performance in demanding industrial environments. This connector fitting features precise dimensions, with 3/4 inch axial compression and 1/2 inch axial elongation capability, ensuring flexibility and durability. Operating at pressures up to 45 psig and temperatures ranging from -10 to 115 °C, this fitting is constructed with high-grade materials, including zinc-plated carbon steel and special synthetic rubber, demonstrating compliance with ISO 9001:2008 standards. Trust Sure Flow for reliable, compliant, and efficient fluid system solutions.
Product Specifications
Construction Construction
Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

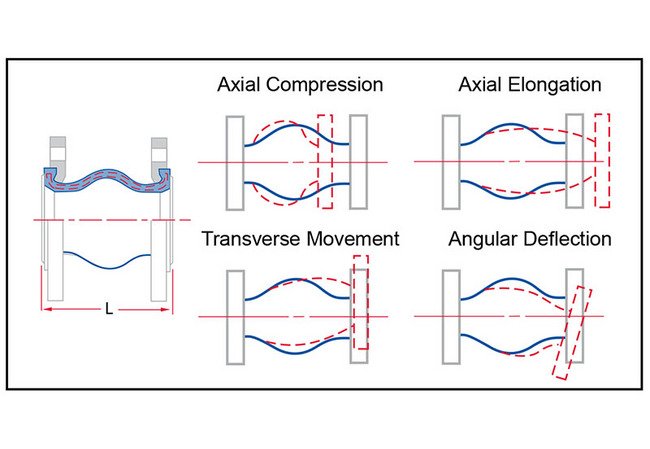

Dimensions Angular Deflection
15 º
Dimensions Axial Compression
3/4 in
Dimensions Axial Elongation
1/2 in
Dimensions Dimension L
8 in
Dimensions Prefix Size
2400
Dimensions Shipping Weight
220 lb
Dimensions Size
24 in
Dimensions Transverse Movement Tolerance
3/4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
45 psig
Operating Pressures And Temperatures Temperature
-10 to 115 ºC | 14 to 240 ºF
Operating Pressures And Temperatures Vacuum Rating
26 inHg
Specifications Series
AMS
