Sure Flow AMS 4 Inch Single-Sphere Connector with Class 150 Floating Flange

Sure Flow AMS 4 Inch Single-Sphere Connector with Class 150 Floating Flange

EXP-c56e86

Sure Flow AMS 4 Inch Single-Sphere Connector with Class 150 Flange - Reliable, durable, and certified for industrial use.

$149.99
$149.99
Sale

Initiate Order

Sure Flow AMS 4 Inch Single-Sphere Connector with Class 150 Floating Flange

Sure Flow AMS 4 Inch Single-Sphere Connector with Class 150 Floating Flange

$149.99

Quantity: 1

Claim Your Seller Account

Sure Flow AMS 4 Inch Single-Sphere Connector with Class 150 Floating Flange

Sure Flow AMS 4 Inch Single-Sphere Connector with Class 150 Floating Flange

$149.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

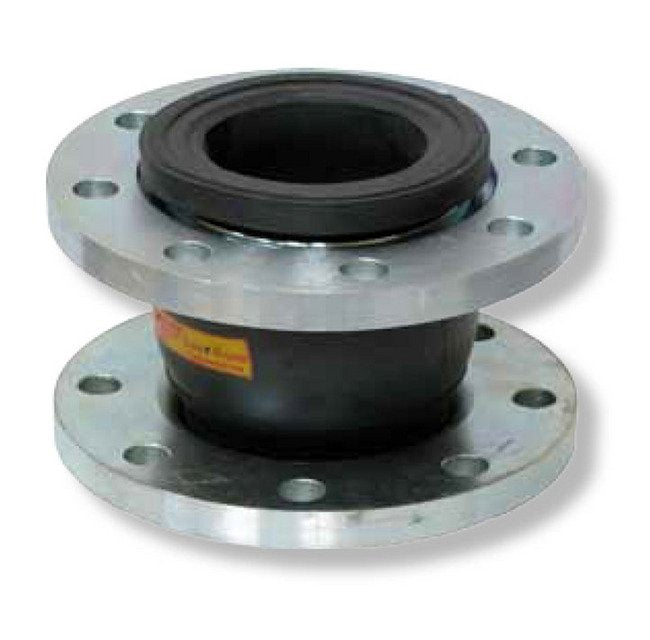

The Sure Flow AMS Series 4 Inch Single-Sphere Connector Fitting with Class 150 Floating Flange is a premium solution for expansion joints and flexible connectors. Featuring international industry certifications such as ISO 9001:2008, this connector fitting offers reliable performance in demanding applications. With a durable construction including CS Zinc Plated flanges, carbon steel wire, special synthetic rubber, and synthetic fiber reinforcing fabric, it ensures longevity and efficiency. Operating within a range of -10 to 115 °C and 150 psig pressure, this fitting excels in both pressure and vacuum conditions.

Product Specifications

Construction Construction
Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

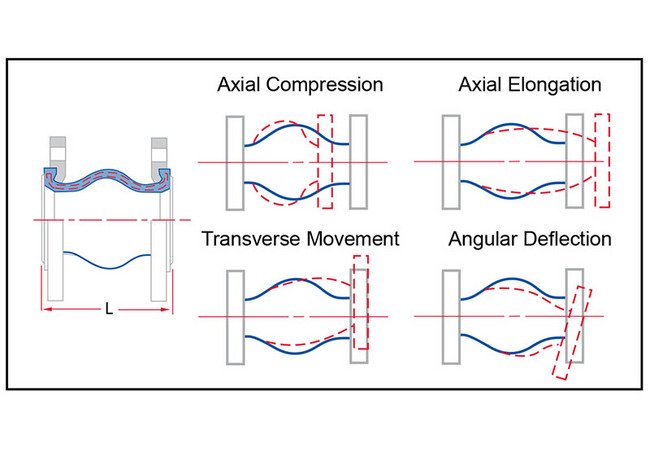

Dimensions Angular Deflection
15 º
Dimensions Axial Compression
5/8 in
Dimensions Axial Elongation
3/8 in
Dimensions Dimension L
6 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
24 lb
Dimensions Size
4 in
Dimensions Transverse Movement Tolerance
1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
150 psig
Operating Pressures And Temperatures Temperature
-10 to 115 ºC | 14 to 240 ºF
Operating Pressures And Temperatures Vacuum Rating
26 inHg
Specifications Series
AMS
