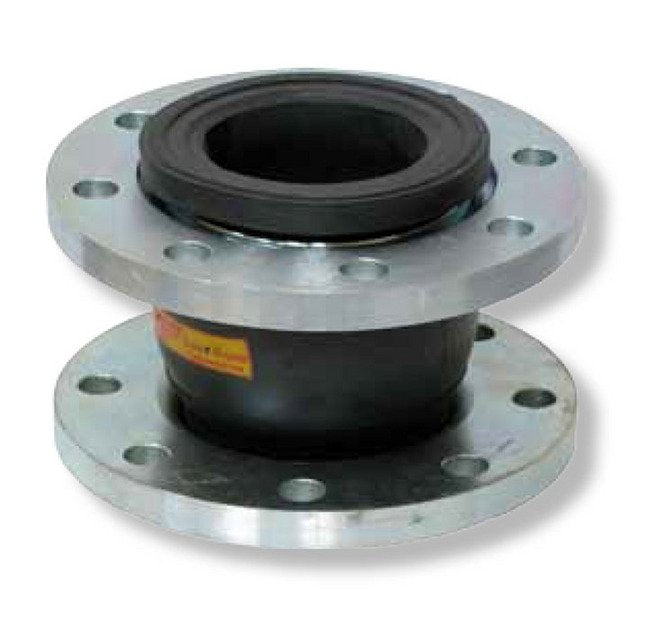

• Sure Flow AMS Series 10in Single-Sphere Connector with Class 150 Flange - Image 1
  • Sure Flow AMS Series 10in Single-Sphere Connector with Class 150 Flange - Image 2
1 2
Sure Flow Equipment, Inc. →

Sure Flow AMS Series 10in Single-Sphere Connector with Class 150 Flange

Sure Flow AMS Series 10in Single-Sphere Connector with Class 150 Flange

EXP-6bd101

Reliable Sure Flow AMS 10in Single-Sphere Connector Fitting with Class 150 Flange for optimal performance.

$369.99
$369.99
Sale

Initiate Order

Sure Flow AMS Series 10in Single-Sphere Connector with Class 150 Flange

Sure Flow AMS Series 10in Single-Sphere Connector with Class 150 Flange

$369.99

Quantity: 1

Claim Your Seller Account

Sure Flow AMS Series 10in Single-Sphere Connector with Class 150 Flange

Sure Flow AMS Series 10in Single-Sphere Connector with Class 150 Flange

$369.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

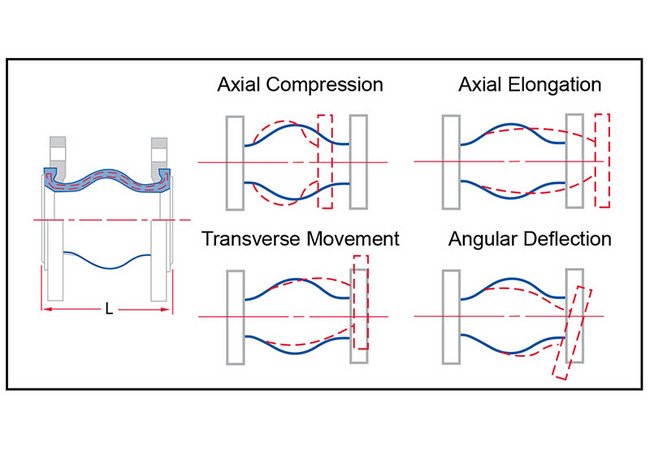

The Sure Flow AMS Series 10in Single-Sphere Connector Fitting with Class 150 Floating Flange is designed for superior performance in managing axial compression, elongation, transverse movement tolerance, and angular deflection. With operating pressures up to 135 psig and a wide temperature range from -10 to 115°C, this connector fitting ensures reliable functionality. Constructed with CS Zinc Plated flanges, carbon steel wire, special synthetic rubber elastomer, and neoprene reinforcing fabric, it meets ISO 9001:2008 standards. Consult the factory for certification details.

Product Specifications

Construction Construction
Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)
Dimensions Angular Deflection
15 º
Dimensions Axial Compression
3/4 in
Dimensions Axial Elongation
1/2 in
Dimensions Dimension L
8 in
Dimensions Prefix Size
1000
Dimensions Shipping Weight
70 lb
Dimensions Size
10 in
Dimensions Transverse Movement Tolerance
3/4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
135 psig
Operating Pressures And Temperatures Temperature
-10 to 115 ºC | 14 to 240 ºF
Operating Pressures And Temperatures Vacuum Rating
26 inHg
Specifications Series
AMS
