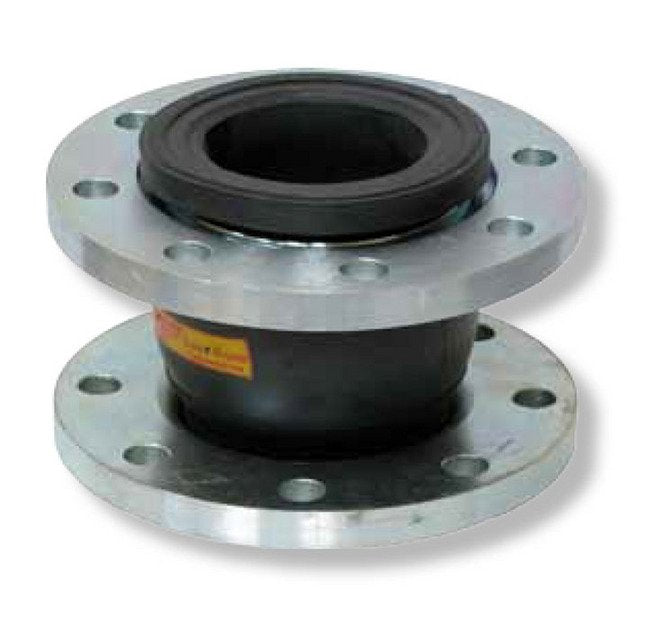

Sure Flow AMS Series 12" Single-Sphere Connector with Class 150 Floating Flange
Sure Flow AMS Series 12" Single-Sphere Connector with Class 150 Floating Flange
SKU:EXP-4722e5
Sure Flow AMS Series 12" Single-Sphere Connector with Class 150 Floating Flange - Reliable, Flexible, and Durable.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Sure Flow AMS Series 12" Single-Sphere Connector with Class 150 Floating Flange
$249.99
Quantity: 1
Claim Your Seller Account
Sure Flow AMS Series 12" Single-Sphere Connector with Class 150 Floating Flange
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow AMS Series 12-inch Single-Sphere Connector Fitting with Class 150 Floating Flange is a robust solution for fluid system flexibility. With a construction meeting international standards and operating pressures up to 90 psig, this fitting offers reliability in a wide temperature range from -10 to 115°C. Its axial compression and elongation capabilities, along with angular deflection and transverse movement tolerance, ensure efficient performance. Ideal for expansion joints and flexible connectors, this product is designed for durability and seamless installation, making it suitable for industrial and institutional applications.
Product Specifications
Construction Construction
Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

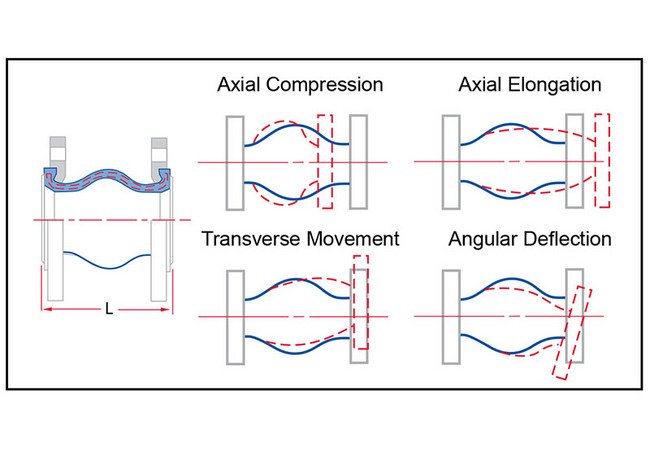

Dimensions Angular Deflection
15 º
Dimensions Axial Compression
3/4 in
Dimensions Axial Elongation
1/2 in
Dimensions Dimension L
8 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
96 lb
Dimensions Size
12 in
Dimensions Transverse Movement Tolerance
3/4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
90 psig
Operating Pressures And Temperatures Temperature
-10 to 115 ºC | 14 to 240 ºF
Operating Pressures And Temperatures Vacuum Rating
26 inHg
Specifications Series
AMS
