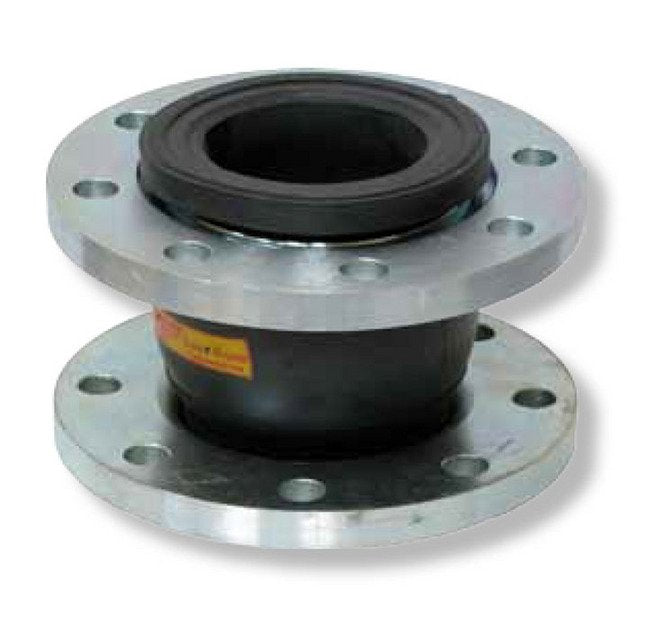

Sure Flow AMS Series 2 1/2 in Single-Sphere Connector with Class 150 Floating Flange
Sure Flow AMS Series 2 1/2 in Single-Sphere Connector with Class 150 Floating Flange
SKU:EXP-a8bd94
Sure Flow AMS Series 2 1/2 in Single-Sphere Connector with Class 150 Floating Flange - Reliable, Flexible, ISO 9001:2008 Compliant.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Sure Flow AMS Series 2 1/2 in Single-Sphere Connector with Class 150 Floating Flange
$159.99
Quantity: 1
Claim Your Seller Account
Sure Flow AMS Series 2 1/2 in Single-Sphere Connector with Class 150 Floating Flange
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow AMS Series Single-Sphere Connector Fitting features a 2 1/2-inch size with a Class 150 floating flange, providing exceptional flexibility and durability for various industrial applications. With operating pressures up to 150 psig and a wide temperature range from -10 to 115°C, this connector fitting offers superior performance. Constructed with high-quality materials and meeting ISO 9001:2008 standards, it ensures reliable operation, while accommodating axial compression, elongation, and transverse movements with precision. Trust Sure Flow for top-notch quality and compliance with industry standards.
Product Specifications
Construction Construction
Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)
Dimensions Angular Deflection
15 º
Dimensions Axial Compression
1/2 in
Dimensions Axial Elongation
3/8 in
Dimensions Dimension L
6 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
16 lb
Dimensions Size
2 1/2 in
Dimensions Transverse Movement Tolerance
1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
150 psig
Operating Pressures And Temperatures Temperature
-10 to 115 ºC | 14 to 240 ºF
Operating Pressures And Temperatures Vacuum Rating
26 inHg
Specifications Series
AMS
