Sure Flow AMS Series 2" Single-Sphere Connector with Class 150 Flange

Sure Flow AMS Series 2" Single-Sphere Connector with Class 150 Flange

EXP-b1f390

Top-quality Sure Flow 2" Single-Sphere Connector with Class 150 Flange for expansion joints, ISO 9001:2008 certified.

$129.99
$129.99
Sale

Initiate Order

Sure Flow AMS Series 2" Single-Sphere Connector with Class 150 Flange

Sure Flow AMS Series 2" Single-Sphere Connector with Class 150 Flange

$129.99

Quantity: 1

Claim Your Seller Account

Sure Flow AMS Series 2" Single-Sphere Connector with Class 150 Flange

Sure Flow AMS Series 2" Single-Sphere Connector with Class 150 Flange

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

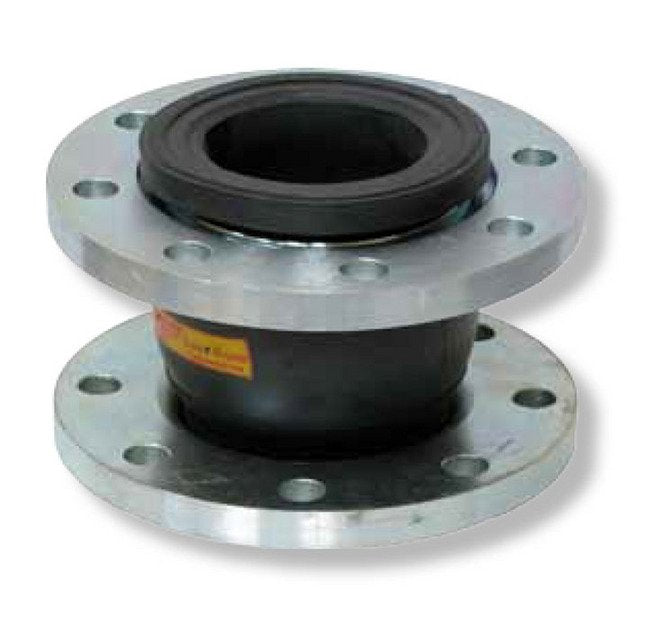

The Sure Flow AMS Series 2-inch Single-Sphere Connector with Class 150 Floating Flange is a top-of-the-line product designed for optimal performance in expansion joint and flexible connector applications. With durable construction featuring zinc-plated flanges, carbon steel wire, special synthetic rubber elastomer, and synthetic fiber reinforcing fabric, this connector ensures reliability and longevity. Operating at pressures up to 150 psig and temperatures ranging from -10 to 115°C, it offers superior flexibility with axial compression and elongation capabilities. Certified to meet ISO 9001:2008 standards, this connector exemplifies quality and compliance.

Product Specifications

Construction Construction
Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

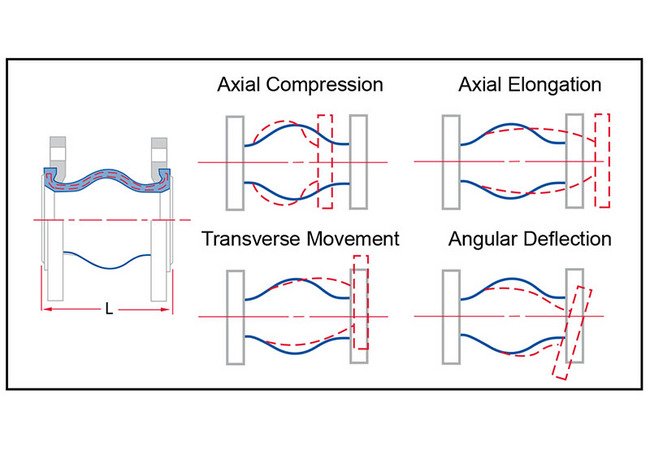

Dimensions Angular Deflection
15 º
Dimensions Axial Compression
1/2 in
Dimensions Axial Elongation
3/8 in
Dimensions Dimension L
6 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
10 lb
Dimensions Size
2 in
Dimensions Transverse Movement Tolerance
1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
150 psig
Operating Pressures And Temperatures Temperature
-10 to 115 ºC | 14 to 240 ºF
Operating Pressures And Temperatures Vacuum Rating
26 inHg
Specifications Series
AMS
