Sure Flow AMS Series 6 Inch Single-Sphere Connector Fitting with Class 150 Floating Flange
Sure Flow AMS Series 6 Inch Single-Sphere Connector Fitting with Class 150 Floating Flange
SKU:EXP-e41dc0
Discover the reliability of Sure Flow AMS Series 6 Inch Single-Sphere Connector Fitting with Flange for superior joint flexibility. ISO 9001:2008 certified.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Sure Flow AMS Series 6 Inch Single-Sphere Connector Fitting with Class 150 Floating Flange
$179.99
Quantity: 1
Claim Your Seller Account
Sure Flow AMS Series 6 Inch Single-Sphere Connector Fitting with Class 150 Floating Flange
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow AMS Series 6 Inch Single-Sphere Connector Fitting with Class 150 Floating Flange is a premium solution for expansion joints and flexible connectors. With a durable construction featuring CS Zinc Plated flanges, carbon steel wire strand, special synthetic rubber elastomer, and synthetic fiber reinforcing fabric, this fitting offers superior performance. Operating at pressures up to 135 psig and temperatures ranging from -10 to 115 °C, it provides reliable flexibility with axial compression of 5/8 in and transverse movement tolerance of ±1/2 in. Certified to ISO 9001:2008 standards, this fitting ensures quality and compliance.
Product Specifications
Construction Construction
Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

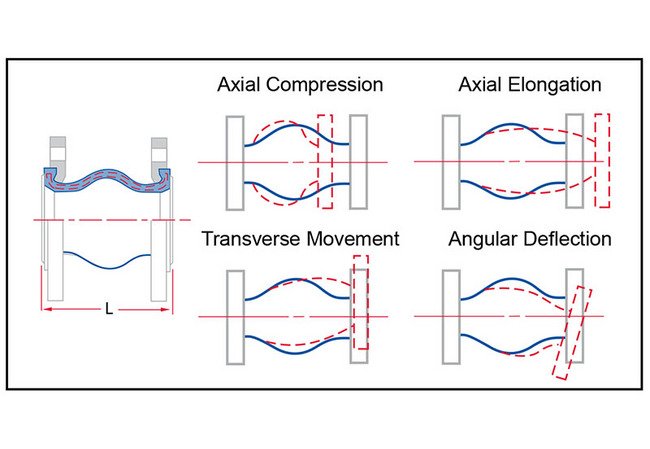

Dimensions Angular Deflection
15 º
Dimensions Axial Compression
5/8 in
Dimensions Axial Elongation
3/8 in
Dimensions Dimension L
6 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
36 lb
Dimensions Size
6 in
Dimensions Transverse Movement Tolerance
1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
135 psig
Operating Pressures And Temperatures Temperature
-10 to 115 ºC | 14 to 240 ºF
Operating Pressures And Temperatures Vacuum Rating
26 inHg
Specifications Series
AMS
