Sure Flow AMT 2 Inch Twin-Sphere Connector with Class 150 Floating Flange
Sure Flow AMT 2 Inch Twin-Sphere Connector with Class 150 Floating Flange
SKU:EXP-606d5b
Sure Flow AMT 2" Twin-Sphere Connector Fitting with Class 150 Floating Flange - Durable, flexible, and ISO 9001:2008 certified. Ideal for expansion joints.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Sure Flow AMT 2 Inch Twin-Sphere Connector with Class 150 Floating Flange
$159.99
Quantity: 1
Claim Your Seller Account
Sure Flow AMT 2 Inch Twin-Sphere Connector with Class 150 Floating Flange
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

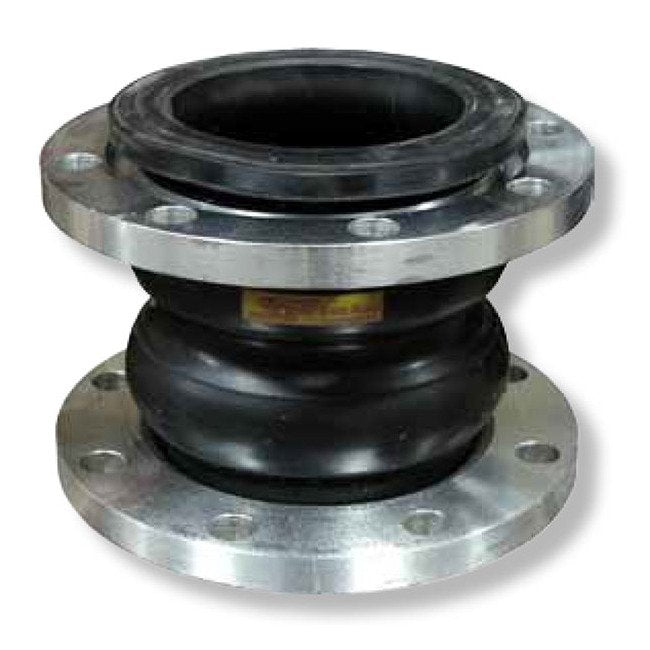

The Sure Flow AMT Series 2 Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange is a durable and versatile expansion joint suitable for a wide range of applications. With a compact 2-inch size and high-quality materials, this connector offers excellent axial compression, elongation, and transverse movement tolerance. It operates at pressures of up to 90 psig, with a vacuum rating of 26 inHg and a temperature range from -10 to 115 °C | 14 to 240 °F. Certified to meet International Organization for Standardization (ISO) 9001:2008 standards, this connector is constructed with CS Zinc Plated flanges, carbon steel wire, special synthetic rubber elastomer, and synthetic fiber reinforcing fabric. Trust in Sure Flow for exceptional quality and reliability.
Product Specifications
Construction Construction
Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

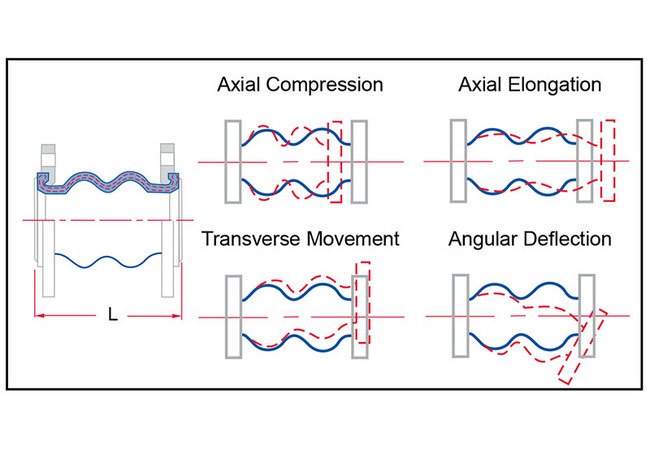

Dimensions Angular Deflection
20 º
Dimensions Axial Compression
1 1/2 in
Dimensions Axial Elongation
1 in
Dimensions Dimension L
13 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
129 lb
Dimensions Size
12 in
Dimensions Transverse Movement Tolerance
1 3/8 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
90 psig
Operating Pressures And Temperatures Temperature
-10 to 115 ºC | 14 to 240 ºF
Operating Pressures And Temperatures Vacuum Rating
26 inHg
Specifications Series
AMT
