Sure Flow AMT Series 2-Inch Twin-Sphere Connector Fitting with Class 150 Flange

Name: Sure Flow AMT Series 2-Inch Twin-Sphere Connector Fitting with Class 150 Flange
Brand: Sure Flow Equipment, Inc.
SKU: EXP-b57bb6
Price: 149.99 USD
Availability: OutOfStock

SKU:EXP-b57bb6

High-performance 2-inch twin-sphere connector fitting with Class 150 flange, ideal for high-pressure applications.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

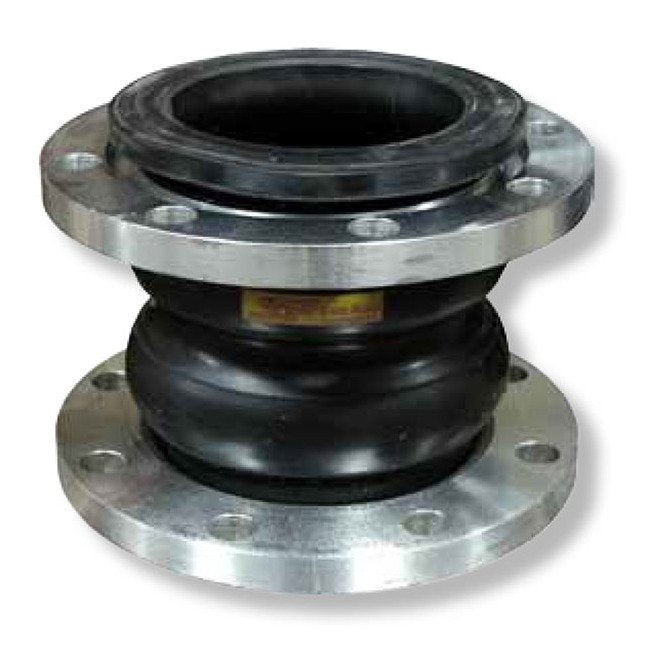

The Sure Flow AMT Series Twin-Sphere Connector Fitting features a 2-inch size with a Class 150 Floating Flange, making it ideal for high-pressure applications. Designed for superior performance, this connector fitting offers excellent axial compression and elongation capabilities, with a transverse movement tolerance of ±1 1/4 inches. With an operating pressure of 135 psig and a temperature range of -10 to 115 ºC, this fitting meets stringent industry standards, including ISO 9001:2008 certification. The construction comprises high-quality materials for durability and reliability, ensuring optimal performance in diverse environments.

Product Specifications

Construction Construction

Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

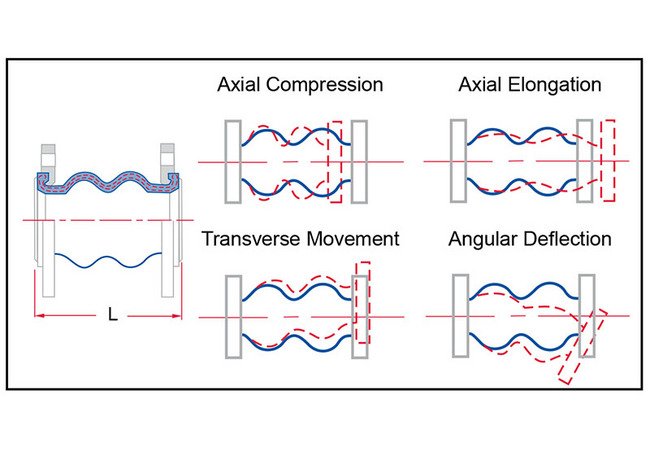

Dimensions Angular Deflection

30 Âº

Dimensions Axial Compression

1 1/4 in

Dimensions Axial Elongation

1 in

Dimensions Dimension L

9 in

Dimensions Prefix Size

0600

Dimensions Shipping Weight

40 lb

Dimensions Size

6 in

Dimensions Transverse Movement Tolerance

1 1/4 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.

Operating Pressures And Temperatures Operating Pressure

135 psig

Operating Pressures And Temperatures Temperature

-10 to 115 ÂºC | 14 to 240 ÂºF

Operating Pressures And Temperatures Vacuum Rating

26 inHg

Specifications Series

AMT

Sure Flow AMT Series 2-Inch Twin-Sphere Connector Fitting with Class 150 Flange
