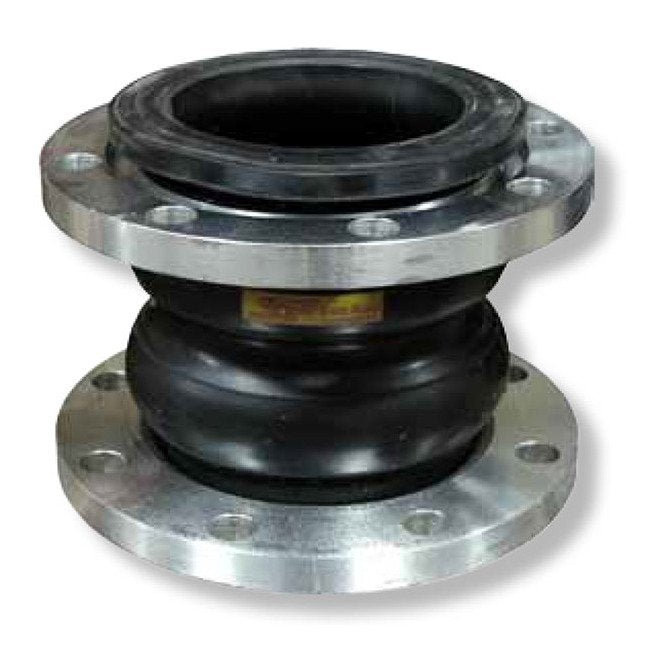

Sure Flow AMT Series 2-Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange

Name: Sure Flow AMT Series 2-Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange
Brand: Sure Flow Equipment, Inc.
SKU: EXP-a149a6
Price: 199.99 USD
Availability: OutOfStock

SKU:EXP-a149a6

High-quality 2" twin-sphere connector fitting for expansion joints & flexible connectors. Meets ISO 9001:2008 standards.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow AMT Series 2-Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange is a versatile solution for expansion joints and flexible connectors. With a size of 2 inches, this fitting offers reliable performance with features like axial compression of 1 1/2 inches, radial movement tolerance of 1 3/8 inches, and angular deflection up to 30 degrees. It meets industry standards including ISO 9001:2008, ensuring quality and compliance. Constructed with durable materials like zinc-plated carbon steel, special synthetic rubber, and synthetic fiber reinforcement, this fitting guarantees longevity and efficient operation.

Product Specifications

Construction Construction

Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

Dimensions Angular Deflection

30 Âº

Dimensions Axial Compression

1 1/2 in

Dimensions Axial Elongation

1 in

Dimensions Dimension L

13 in

Dimensions Prefix Size

0800

Dimensions Shipping Weight

56 lb

Dimensions Size

8 in

Dimensions Transverse Movement Tolerance

1 3/8 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.

Operating Pressures And Temperatures Operating Pressure

135 psig

Operating Pressures And Temperatures Temperature

-10 to 115 ÂºC | 14 to 240 ÂºF

Operating Pressures And Temperatures Vacuum Rating

26 inHg

Specifications Series

AMT

Sure Flow AMT Series 2-Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange
