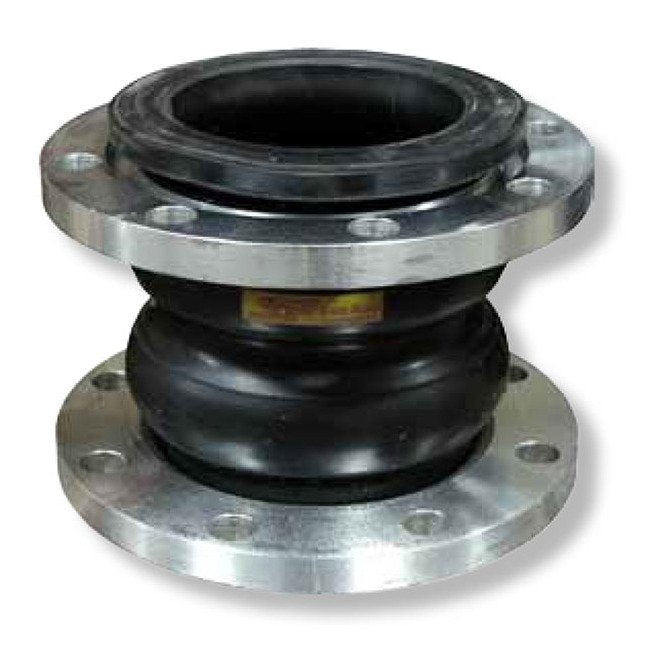

Sure Flow AMT Series 2 Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange

Name: Sure Flow AMT Series 2 Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange
Brand: Sure Flow Equipment, Inc.
SKU: EXP-b3646b
Price: 69.99 USD
Availability: OutOfStock

SKU:EXP-b3646b

The Sure Flow AMT Series 2 Inch Twin-Sphere Connector Fitting - Reliable, Flexible, and ISO 9001:2008 Certified

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow AMT Series 2 Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange is a reliable and durable solution for expansion joints and flexible connectors. With a 2-inch size and high-quality zinc-plated carbon steel construction, this fitting offers excellent dimensional flexibility, with an axial compression of 1 inch and axial elongation of 3/4 inch. It can withstand operating pressures of up to 150 psig and temperatures ranging from -10 to 115 °C. Certified to meet International Organization for Standardization (ISO) 9001:2008 standards, this fitting ensures top-notch performance and longevity in diverse industrial applications.

Product Specifications

Construction Construction

Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

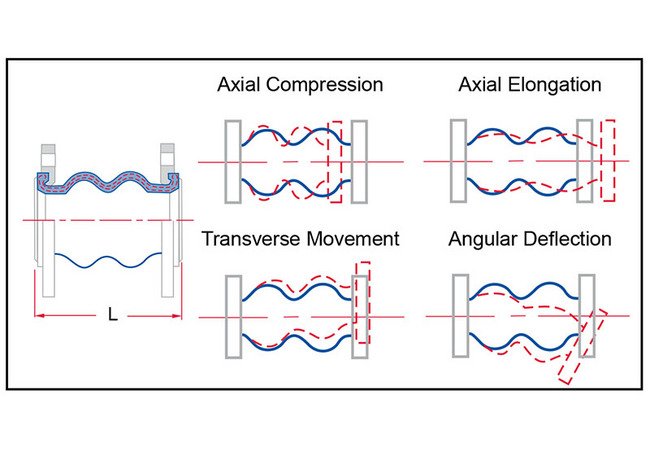

Dimensions Angular Deflection

40 Âº

Dimensions Axial Compression

1 in

Dimensions Axial Elongation

3/4 in

Dimensions Dimension L

7 in

Dimensions Prefix Size

0300

Dimensions Shipping Weight

17 lb

Dimensions Size

3 in

Dimensions Transverse Movement Tolerance

1 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.

Operating Pressures And Temperatures Operating Pressure

150 psig

Operating Pressures And Temperatures Temperature

-10 to 115 ÂºC | 14 to 240 ÂºF

Operating Pressures And Temperatures Vacuum Rating

26 inHg

Specifications Series

AMT
