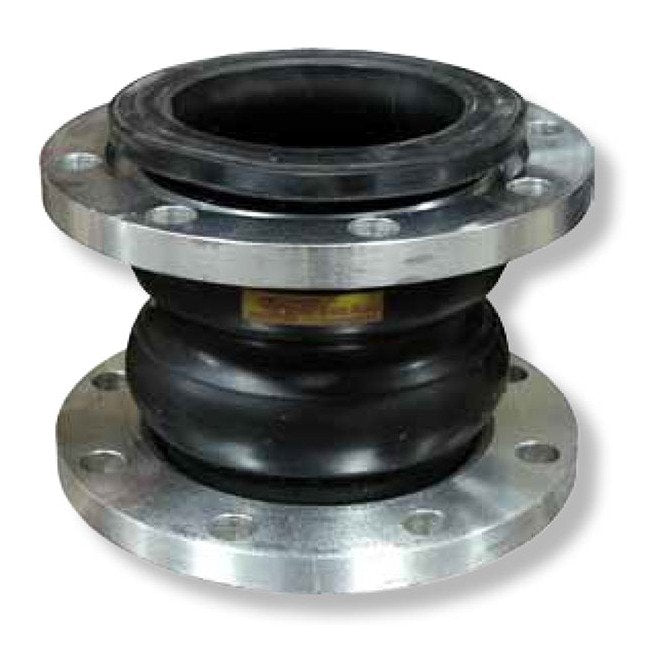

Sure Flow AMT Series 2 Inch Twin-Sphere Connector with Class 150 Floating Flange

Name: Sure Flow AMT Series 2 Inch Twin-Sphere Connector with Class 150 Floating Flange
Brand: Sure Flow Equipment, Inc.
SKU: EXP-e95a69
Price: 249.99 USD
Availability: OutOfStock

SKU:EXP-e95a69

Enhance joint flexibility with Sure Flow AMT Series 2 Inch Twin-Sphere Connector for Class 150 Flanges. ISO 9001:2008 certified.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow AMT Series 2 Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange is a premium solution for expansion joints and flexible connectors. Designed to meet the highest industry standards, this fitting offers precise dimensions, exceptional axial compression, and elongation capabilities. Operating at pressures up to 150 psig and temperatures ranging from -10 to 115 ºC, it ensures reliable performance. Constructed with top-quality materials including CS Zinc Plated flanges, carbon steel wire, special synthetic rubber, and reinforcing fabric, this product guarantees durability and longevity. Certified under ISO 9001:2008, it exemplifies excellence in design and functionality.

Product Specifications

Construction Construction

Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

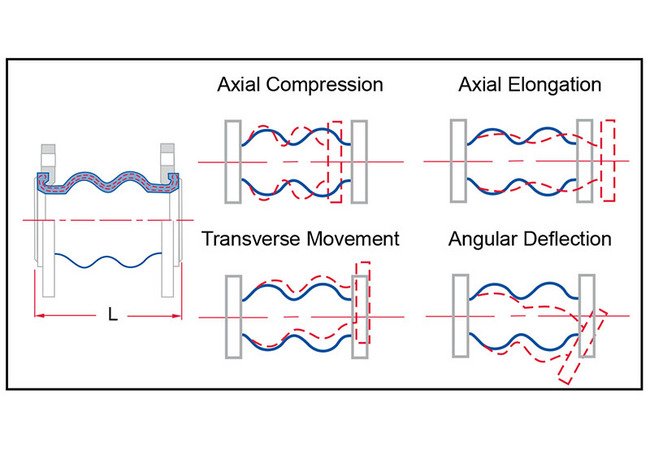

Dimensions Angular Deflection

40 Âº

Dimensions Axial Compression

1 in

Dimensions Axial Elongation

3/4 in

Dimensions Dimension L

7 in

Dimensions Prefix Size

0250

Dimensions Shipping Weight

15 lb

Dimensions Size

2 1/2 in

Dimensions Transverse Movement Tolerance

1 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.

Operating Pressures And Temperatures Operating Pressure

150 psig

Operating Pressures And Temperatures Temperature

-10 to 115 ÂºC | 14 to 240 ÂºF

Operating Pressures And Temperatures Vacuum Rating

26 inHg

Specifications Series

AMT

Sure Flow AMT Series 2 Inch Twin-Sphere Connector with Class 150 Floating Flange
