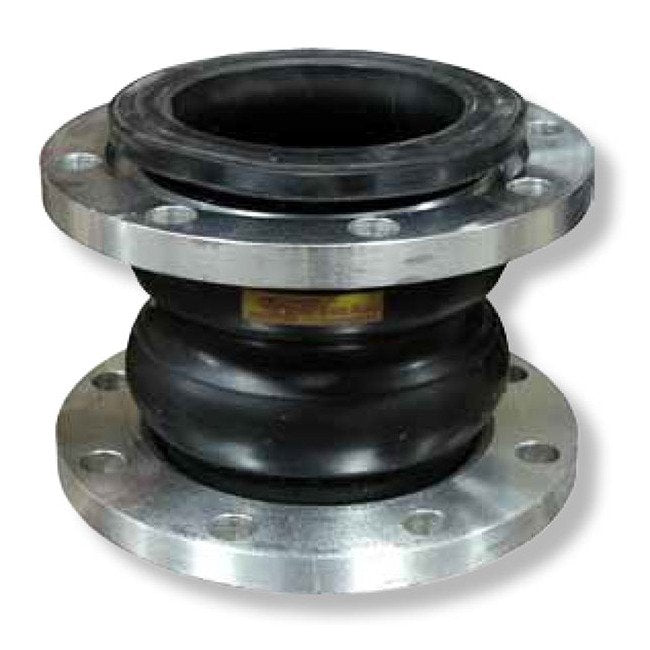

Sure Flow AMT Series 2-Inch Twin-Sphere Connector with Class 150 Floating Flange

Name: Sure Flow AMT Series 2-Inch Twin-Sphere Connector with Class 150 Floating Flange
Brand: Sure Flow Equipment, Inc.
SKU: EXP-201452
Price: 149.99 USD
Availability: OutOfStock

SKU:EXP-201452

Reliable Sure Flow AMT Series 2-Inch Twin-Sphere Connector with Class 150 Floating Flange for industrial applications. Meets ISO 9001:2008 standards.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

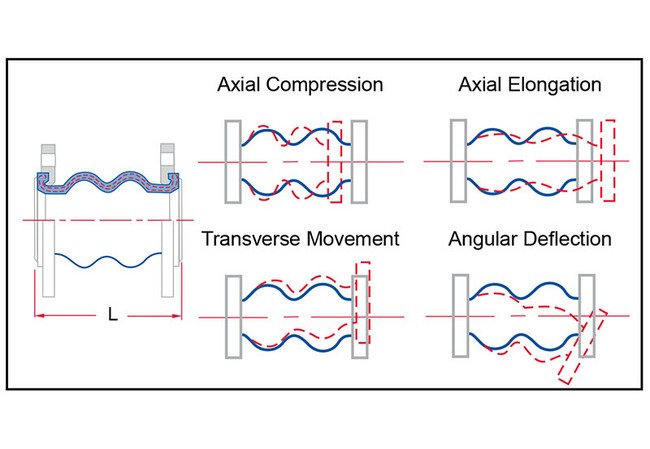

The Sure Flow AMT Series Twin-Sphere Connector Fitting with Class 150 Floating Flange is a robust solution for Expansion Joints and Flexible Connectors in industrial applications. With a Size of 2 inches and a durable construction featuring CS Zinc Plated flanges, this connector offers superior performance. Operating under pressures up to 135 psig and temperatures ranging from -10 to 115°C, it meets International Organization for Standardization (ISO) 9001:2008 standards. The flexible design allows for Axial Compression of 1 1/2 inches, Axial Elongation of 1 inch, and Angular Deflection of 30 degrees, ensuring versatile use with Transverse Movement Tolerance of ±1 3/8 inches.

Product Specifications

Construction Construction

Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

Dimensions Angular Deflection

30 Âº

Dimensions Axial Compression

1 1/2 in

Dimensions Axial Elongation

1 in

Dimensions Dimension L

13 in

Dimensions Prefix Size

1000

Dimensions Shipping Weight

77 lb

Dimensions Size

10 in

Dimensions Transverse Movement Tolerance

1 3/8 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.

Operating Pressures And Temperatures Operating Pressure

135 psig

Operating Pressures And Temperatures Temperature

-10 to 115 ÂºC | 14 to 240 ÂºF

Operating Pressures And Temperatures Vacuum Rating

26 inHg

Specifications Series

AMT

Sure Flow AMT Series 2-Inch Twin-Sphere Connector with Class 150 Floating Flange
