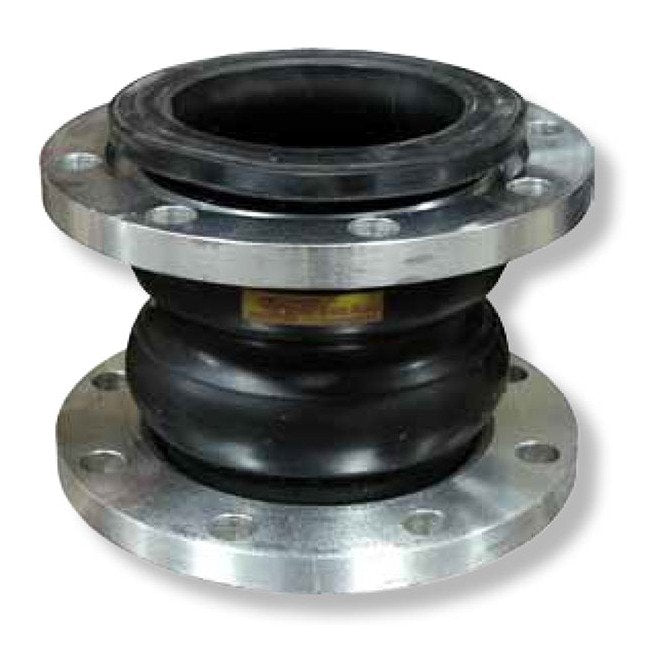

• Sure Flow AMT Series 2-Inch Twin-Sphere Connector with Class 150 Floating Flange - Image 1
  • Sure Flow AMT Series 2-Inch Twin-Sphere Connector with Class 150 Floating Flange - Image 2
1 2
Sure Flow Equipment, Inc. →

Sure Flow AMT Series 2-Inch Twin-Sphere Connector with Class 150 Floating Flange

Sure Flow AMT Series 2-Inch Twin-Sphere Connector with Class 150 Floating Flange

EXP-644c91

Flexible 4-inch Twin-Sphere Connector with Class 150 Floating Flange, Ideal for Wide Temperature Range

$129.99
$129.99
Sale

Initiate Order

Sure Flow AMT Series 2-Inch Twin-Sphere Connector with Class 150 Floating Flange

Sure Flow AMT Series 2-Inch Twin-Sphere Connector with Class 150 Floating Flange

$129.99

Quantity: 1

Claim Your Seller Account

Sure Flow AMT Series 2-Inch Twin-Sphere Connector with Class 150 Floating Flange

Sure Flow AMT Series 2-Inch Twin-Sphere Connector with Class 150 Floating Flange

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

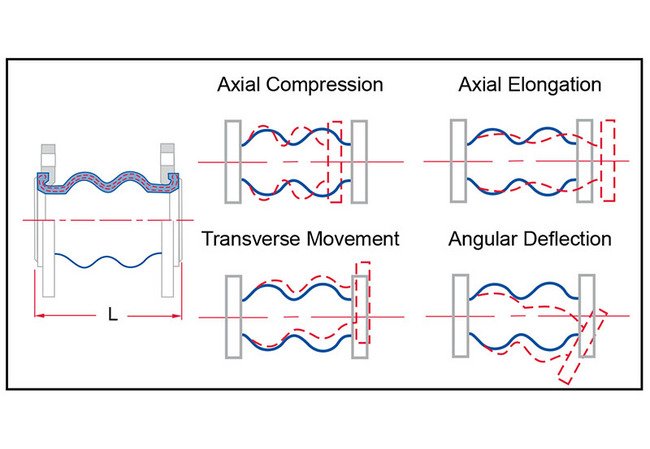

The Sure Flow AMT Series Twin-Sphere Connector Fitting with Class 150 Floating Flange is 4 inches in size, offering exceptional flexibility with 35º angular deflection. Designed for axial compression and elongation of 1 1/4 inches and 1 inch respectively, it provides reliable performance in a wide temperature range from -10 to 115 ºC. This expansion joint, constructed with high-quality materials including CS Zinc Plated flanges, carbon steel wire, and special synthetic rubber elastomer, meets ISO 9001:2008 standards ensuring durability and quality. Manufacturer's modifications can be accommodated, consult for details.

Product Specifications

Construction Construction
Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)
Dimensions Angular Deflection
35 º
Dimensions Axial Compression
1 1/4 in
Dimensions Axial Elongation
1 in
Dimensions Dimension L
9 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
19 lb
Dimensions Size
4 in
Dimensions Transverse Movement Tolerance
1 1/4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
150 psig
Operating Pressures And Temperatures Temperature
-10 to 115 ºC | 14 to 240 ºF
Operating Pressures And Temperatures Vacuum Rating
26 inHg
Specifications Series
AMT
