Sure Flow AMT Series 2" Twin-Sphere Connector Fitting with Class 150 Floating Flange

Name: Sure Flow AMT Series 2" Twin-Sphere Connector Fitting with Class 150 Floating Flange
Brand: Sure Flow Equipment, Inc.
SKU: EXP-5226dc
Price: 129.99 USD
Availability: OutOfStock

SKU:EXP-5226dc

Sure Flow AMT Series 2" Twin-Sphere Connector Fitting - Flexible, Reliable, ISO 9001:2008 Certified

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow AMT Series 2" Twin-Sphere Connector Fitting with Class 150 Floating Flange is a high-quality and durable expansion joint designed for optimal flexibility and reliable performance. This fitting features a Size of 2 inches, Axial Compression of 1 1/4 inches, and can accommodate Operating Pressures up to 135 psig. Constructed with CS Zinc Plated material for the flanges, Carbon Steel Wire for the wire, Special Synthetic Rubber for the elastomer, and Synthetic Fiber (Neoprene) for the reinforcing fabric, this connector fitting meets International Organization for Standardization (ISO) 9001:2008 standards. Trust in Sure Flow for top-notch quality that exceeds industry expectations.

Product Specifications

Construction Construction

Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

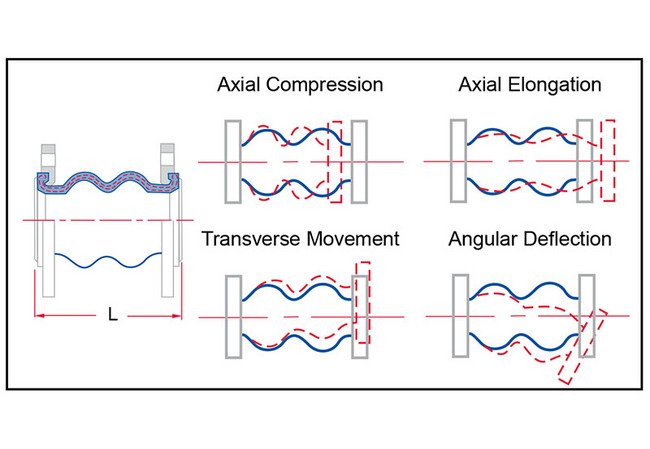

Dimensions Angular Deflection

30 Âº

Dimensions Axial Compression

1 1/4 in

Dimensions Axial Elongation

1 in

Dimensions Dimension L

9 in

Dimensions Prefix Size

0500

Dimensions Shipping Weight

35 lb

Dimensions Size

5 in

Dimensions Transverse Movement Tolerance

1 1/4 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.

Operating Pressures And Temperatures Operating Pressure

135 psig

Operating Pressures And Temperatures Temperature

-10 to 115 ÂºC | 14 to 240 ÂºF

Operating Pressures And Temperatures Vacuum Rating

26 inHg

Specifications Series

AMT
