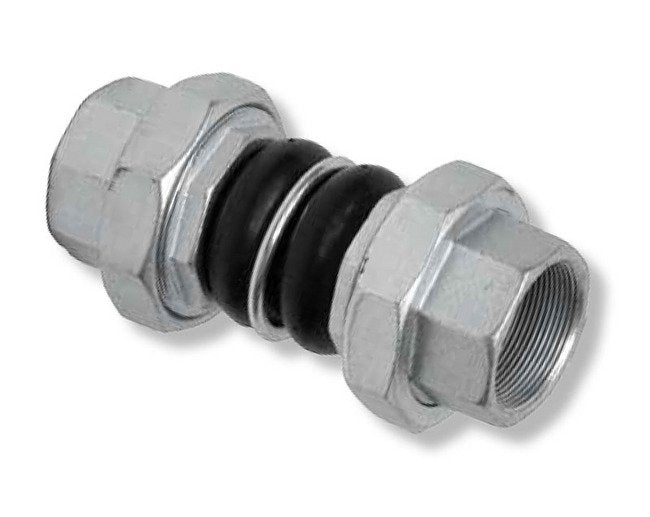

Sure Flow AMU 1 Inch Twin-Sphere Connector NPT Fitting
Sure Flow AMU 1 Inch Twin-Sphere Connector NPT Fitting
SKU:EXP-796171
Reliable Sure Flow AMU 1 Inch Twin-Sphere Connector Fitting for demanding applications. Meets ISO 9001:2008 standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Sure Flow AMU 1 Inch Twin-Sphere Connector NPT Fitting
$89.99
Quantity: 1
Claim Your Seller Account
Sure Flow AMU 1 Inch Twin-Sphere Connector NPT Fitting
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow AMU Series 1 Inch Twin-Sphere Connector Fitting with National Pipe Thread (NPT) is a top-quality expansion joint designed to withstand varying pressures and temperatures. With dimensions of 1 inch size and axial compression capability of 7/8 inch, this fitting offers superior performance. It meets International Organization for Standardization (ISO) 9001:2008 standards, ensuring reliability and durability. Constructed with CS Zinc Plated and special synthetic rubber, it provides exceptional resistance to wear and tear. Ideal for institutional and government procurement needs.
Product Specifications
Construction Construction
Name - UnionMaterial - CS Zinc PlatedName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)
Dimensions Angular Deflection
25 º
Dimensions Axial Compression
7/8 in
Dimensions Axial Elongation
1/4 in
Dimensions Dimension L
8 in
Dimensions Prefix Size
0100
Dimensions Shipping Weight
5 lb
Dimensions Size
1 in
Dimensions Transverse Movement Tolerance
7/8 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
150 psig
Operating Pressures And Temperatures Temperature
-10 to 105 ºC | 14 to 221 ºF
Operating Pressures And Temperatures Vacuum Rating
16 inHg
Specifications Series
AMU
