Sure Flow AMU 3/4in Twin-Sphere Connector NPT Fitting
Sure Flow AMU 3/4in Twin-Sphere Connector NPT Fitting
SKU:EXP-fb1629
Sure Flow AMU 3/4in Twin-Sphere Connector NPT - Flexible, durable, compliant with ISO standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Sure Flow AMU 3/4in Twin-Sphere Connector NPT Fitting
$49.99
Quantity: 1
Claim Your Seller Account
Sure Flow AMU 3/4in Twin-Sphere Connector NPT Fitting
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow AMU Series 3/4 Inch Twin-Sphere Connector Fitting with National Pipe Thread (NPT) offers superior flexibility, axial compression, and elongation capabilities, ideal for Expansion Joints and Flexible Connectors applications. With operating pressure up to 150 psig and a temperature range from -10 to 105°C, this fitting meets ISO 9001:2008 standards, ensuring quality performance. Constructed with CS Zinc Plated material, special synthetic rubber elastomer, and reinforced fabric, this connector guarantees durability and reliability. Manufacturer consultation available for certifications.
Product Specifications
Construction Construction
Name - UnionMaterial - CS Zinc PlatedName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)
Dimensions Angular Deflection
30 º
Dimensions Axial Compression
7/8 in
Dimensions Axial Elongation
1/4 in

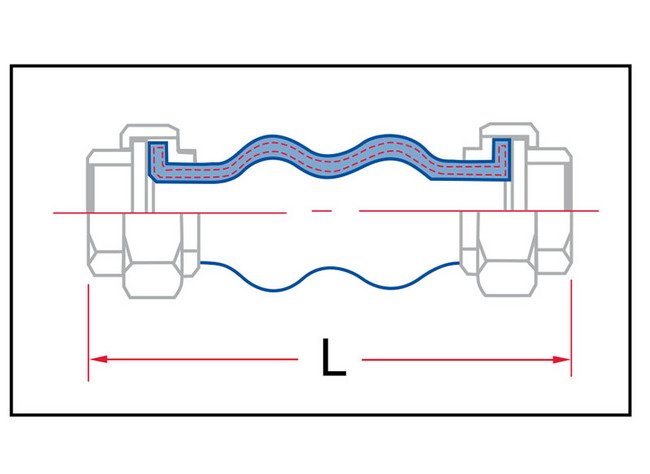

Dimensions Dimension L
8 in
Dimensions Prefix Size
0075
Dimensions Shipping Weight
4 lb
Dimensions Size
3/4 in
Dimensions Transverse Movement Tolerance
7/8 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
150 psig
Operating Pressures And Temperatures Temperature
-10 to 105 ºC | 14 to 221 ºF
Operating Pressures And Temperatures Vacuum Rating
16 inHg
Specifications Series
AMU
