Sure Flow AMU Series 1.25'' Twin-Sphere Connector NPT Fitting
Sure Flow AMU Series 1.25'' Twin-Sphere Connector NPT Fitting
SKU:EXP-bf06c2
Sure Flow AMU Series 1.25'' Twin-Sphere Connector Fitting, robust and flexible for diverse applications. Meets ISO 9001:2008 standards. High-performance construction.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Sure Flow AMU Series 1.25'' Twin-Sphere Connector NPT Fitting
$89.99
Quantity: 1
Claim Your Seller Account
Sure Flow AMU Series 1.25'' Twin-Sphere Connector NPT Fitting
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow AMU Series Twin-Sphere Connector Fitting offers outstanding durability and flexibility for various applications. With a Size of 1.25 inches, this fitting boasts precise Axial Compression and Elongation capabilities along with a Transverse Movement Tolerance up to 7/8 inches, ensuring reliable performance. Operating at pressures of up to 150 psig and temperatures ranging from -10 to 105°C, this connector meets ISO 9001:2008 standards for quality assurance. Constructed with CS Zinc Plated materials, Special Synthetic Rubber, and Synthetic Fiber reinforcement, this fitting is designed for longevity and resilience. Partner with a trusted manufacturer with the Sure Flow AMU Series.
Product Specifications
Construction Construction
Name - UnionMaterial - CS Zinc PlatedName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)
Dimensions Angular Deflection
25 º
Dimensions Axial Compression
7/8 in
Dimensions Axial Elongation
1/4 in

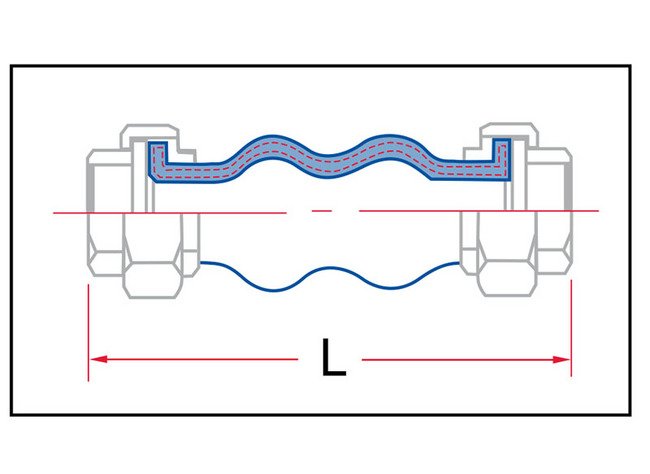

Dimensions Dimension L
8 in
Dimensions Prefix Size
0125
Dimensions Shipping Weight
7 lb
Dimensions Size
1 1/4 in
Dimensions Transverse Movement Tolerance
7/8 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
150 psig
Operating Pressures And Temperatures Temperature
-10 to 105 ºC | 14 to 221 ºF
Operating Pressures And Temperatures Vacuum Rating
16 inHg
Specifications Series
AMU
