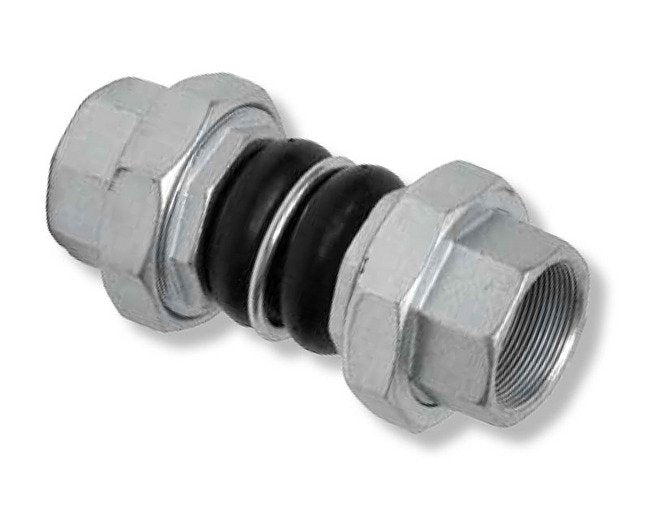

Sure Flow AMU Series 1.5 Inch Twin-Sphere Connector Fitting with NPT
Sure Flow AMU Series 1.5 Inch Twin-Sphere Connector Fitting with NPT
SKU:EXP-f98310
Sure Flow AMU Series 1.5 Inch Twin-Sphere Connector with NPT, ISO 9001:2008 Certified, Ideal for Expansion Joints & Connectors
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Sure Flow AMU Series 1.5 Inch Twin-Sphere Connector Fitting with NPT
$89.99
Quantity: 1
Claim Your Seller Account
Sure Flow AMU Series 1.5 Inch Twin-Sphere Connector Fitting with NPT
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow AMU Series 1.5 Inch Twin-Sphere Connector Fitting with NPT is a reliable solution for expansion joints and flexible connectors. With a 1 1/2 inch size, this fitting boasts a sturdy construction with CS Zinc Plated material and Special Synthetic Rubber Elastomer for durability. It meets industry standards including ISO 9001:2008, ensuring quality and performance. Operating under pressures up to 150 psig and temperatures from -10 to 105°C, it offers versatility and reliability for various applications. The 20-degree angular deflection and axial compression of 7/8 inch make it suitable for demanding environments.
Product Specifications
Construction Construction
Name - UnionMaterial - CS Zinc PlatedName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)
Dimensions Angular Deflection
20 º
Dimensions Axial Compression
7/8 in
Dimensions Axial Elongation
1/4 in

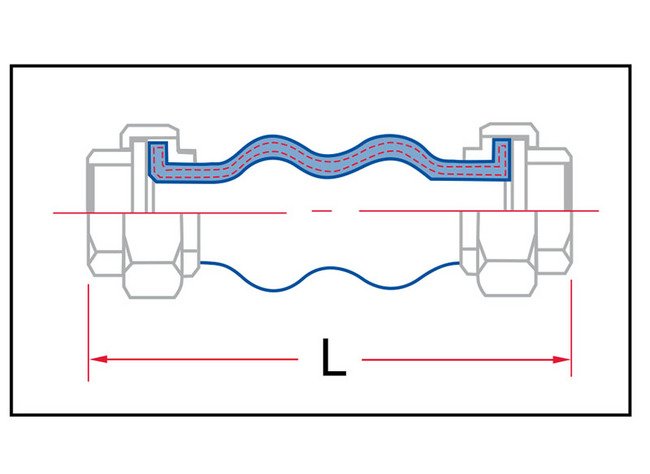

Dimensions Dimension L
8 in
Dimensions Prefix Size
0150
Dimensions Shipping Weight
9 lb
Dimensions Size
1 1/2 in
Dimensions Transverse Movement Tolerance
7/8 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
150 psig
Operating Pressures And Temperatures Temperature
-10 to 105 ºC | 14 to 221 ºF
Operating Pressures And Temperatures Vacuum Rating
16 inHg
Specifications Series
AMU
