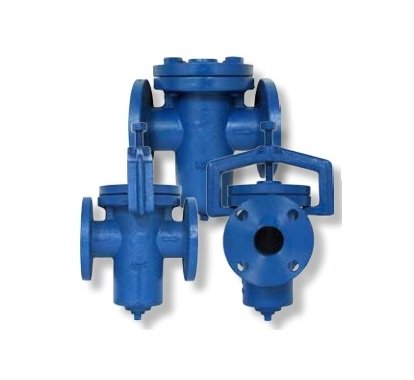

The Sure Flow ASME Class 125 Cast Iron Basket Strainer in 12-inch size is a robust filtration solution designed for durability and efficiency. Available with bolted or quick release clamp cover options, this strainer is ideal for applications requiring frequent basket clean-outs. With spare clean baskets to minimize downtime, differential pressure gauges with alarms help optimize cleaning schedules. Constructed with ASTM A126 Class B Cast Iron body and cover materials, and stainless steel screen, it ensures reliable performance under high operating pressures. Compliant with ISO 9001:2008 standards, it offers precision filtration for water, oil, and gas applications.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel

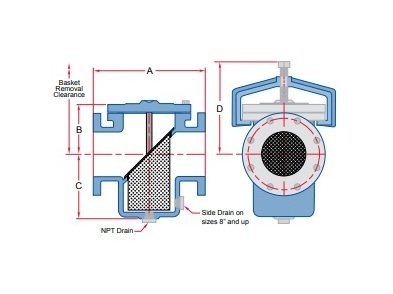

Dimensions Basket Removal Clearance
37 3/4 in
Dimensions Blow Off National Pipe Thread Npt Size
1 in
Dimensions Dimension A
26 1/4 in
Dimensions Dimension B
13 1/8 in
Dimensions Dimension C
16 3/8 in
Dimensions Dimension D
17 1/2 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
820 lb
Dimensions Size
12 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceDrain location may differ from image shownManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
