Sure Flow ASME Class 150 Paddle Spacer for Line Blinds & Bleed Rings
Sure Flow ASME Class 150 Paddle Spacer for Line Blinds & Bleed Rings
SKU:LIN-4e9997
Enhance pipeline operations with Sure Flow ASME Class 150 Paddle Spacer for precise control and reliability in critical applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Sure Flow ASME Class 150 Paddle Spacer for Line Blinds & Bleed Rings
$69.99
Quantity: 1
Claim Your Seller Account
Sure Flow ASME Class 150 Paddle Spacer for Line Blinds & Bleed Rings
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow ASME Class 150 Paddle Spacer is expertly crafted from Carbon Steel to exacting specifications, ensuring durability and reliability in critical pipeline operations. With a Size of 6 inches, Pressure of 285 psi at 100°F, and precision-engineered dimensions, this Paddle Spacer meets stringent ASME standards for Class 150 applications. Designed as the open half of a Spectacle Blind, it facilitates seamless maintenance and reactivation of piping systems, making it an indispensable component for industrial settings.
Product Specifications
Additional Information Additional Information
Sure Flow Equipment Line Blind thicknesses are based on ASME B16.48 specifications and are designed to withstand any pressure - temperature combination that an ASME flange will withstand.One coat of standard shop primer will be applied to all carbon steel Line Blinds unless specified differently.Mill finish is standard. Other surface finishes are available. Contact factory for options. Standard materials are: SA516 Gr.70304 Stainless Steel316 Stainless Steel Other alloys can be furnished upon requestSure Flow Equipment Line Blinds are produced in strict accordance with the following codes of practice: ASME B16.48ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

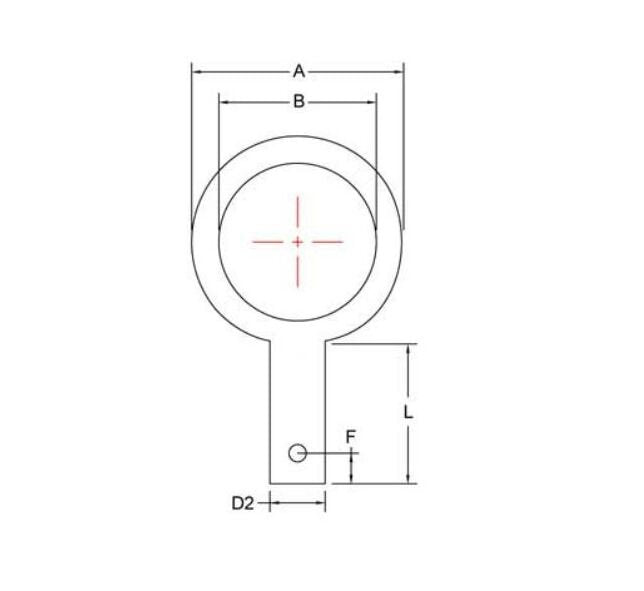

Dimensions Diameter E
7/8 in
Dimensions Dimension A
8 5/8 in
Dimensions Dimension B
6 5/8 in
Dimensions Dimension C
9 1/2 in
Dimensions Dimension D1
3 in
Dimensions Dimension D2
1 in
Dimensions Dimension F
1 in
Dimensions Dimension L
4 in
Dimensions Size
6 in
Dimensions Thickness
1/2 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Material
Carbon Steel
Specifications Prefix Size
0600
