Sure Flow ASME Class 600 6 Inch Paddle Spacer
Sure Flow ASME Class 600 6 Inch Paddle Spacer
SKU:LIN-986eaf
High-quality stainless steel 6 Inch Paddle Spacer for ASME Class 600 applications, with 1440 psi pressure rating at 100°F
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Sure Flow ASME Class 600 6 Inch Paddle Spacer
$199.99
Quantity: 1
Claim Your Seller Account
Sure Flow ASME Class 600 6 Inch Paddle Spacer
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

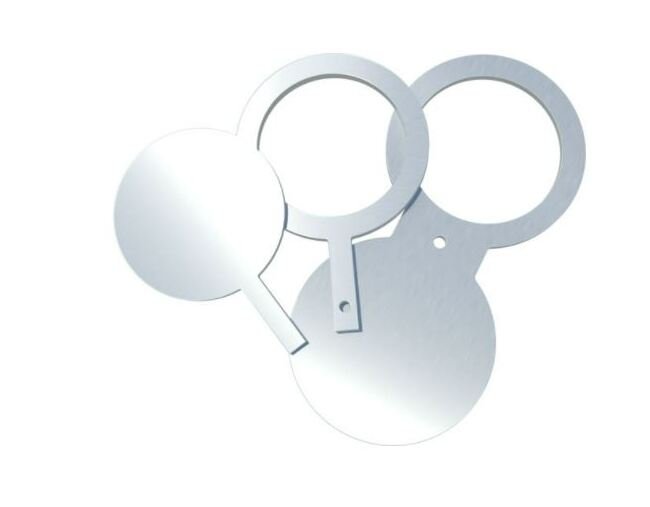

The Sure Flow ASME Class 600 6 Inch Paddle Spacer is a durable and versatile solution for industrial piping systems. Crafted from high-quality stainless steel, it offers exceptional strength and corrosion resistance. With a pressure rating of 1440 psi at 100°F, this spacer ensures reliable performance in water, oil, and gas applications. Compliant with ASME Class 600 standards, it meets stringent industry requirements for safety and quality. Ideal for use in line blinds and bleed rings, this paddle spacer is designed for easy operation and long-lasting durability.
Product Specifications
Additional Information Additional Information
One coat of standard shop primer will be applied to all carbon steel Line Blinds unless specified differently.Mill finish is standard. Other surface finishes are available. Contact factory for options. Standard materials are: SA516 Gr.70304 Stainless Steel316 Stainless Steel Other alloys can be furnished upon requestSure Flow Equipment Line Blinds are produced in strict accordance with the following codes of practice: ASME B16.48ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

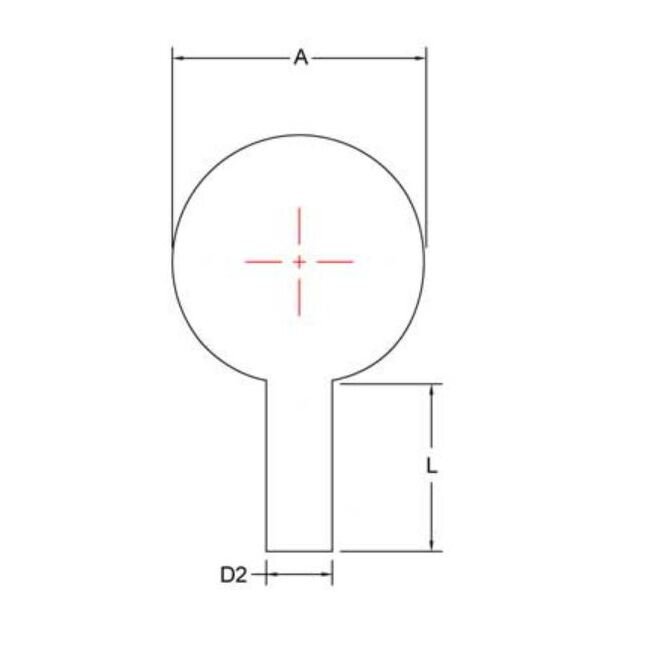

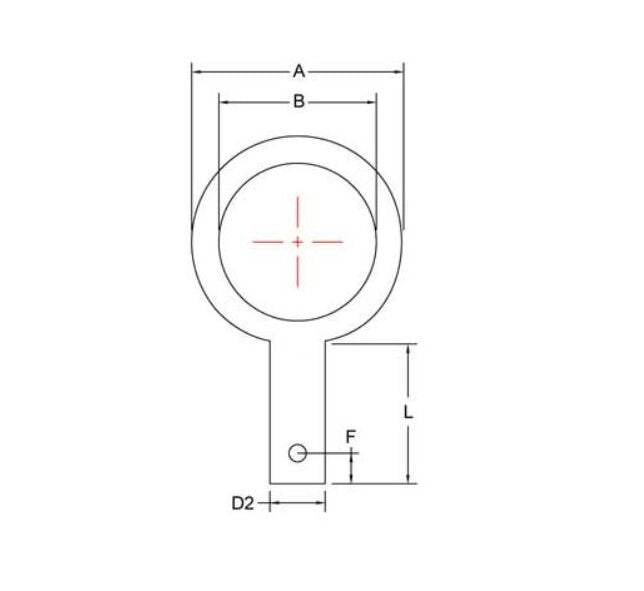

Dimensions Diameter E
1 1/8 in
Dimensions Dimension A
10 3/8 in
Dimensions Dimension B
6 3/8 in
Dimensions Dimension C
11 1/2 in
Dimensions Dimension D1
3 3/8 in
Dimensions Dimension D2
1 in
Dimensions Dimension F
1 in
Dimensions Dimension L
5 in
Dimensions Size
6 in
Dimensions Thickness
7/8 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 600 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 489 Degree Fahr
600 psi
Specifications Material
Stainless Steel
Specifications Prefix Size
0600
