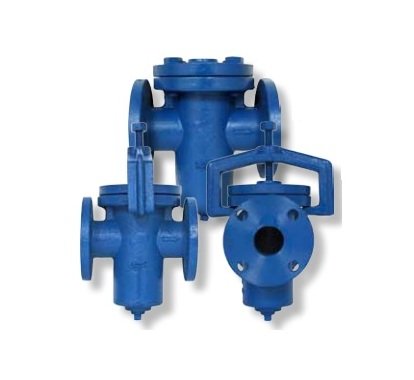

The Sure Flow BF125 14 Inch Cast Iron Basket Strainer is a robust solution for industrial applications, featuring an ASME Class 125 flanged design in durable ASTM A126 Class B Cast Iron construction. This strainer comes with options for bolted or quick-release clamped covers, ideal for frequent clean-outs. With a spare clean basket for reduced maintenance downtime and compatibility with differential pressure gauges, this strainer ensures maximum on-stream time between cleaning cycles.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel

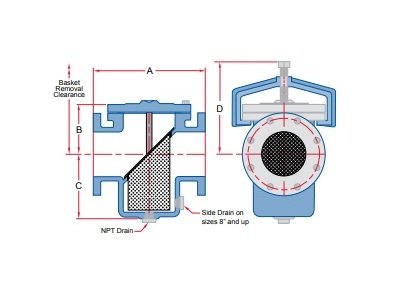

Dimensions Basket Removal Clearance
46 1/8 in
Dimensions Blow Off National Pipe Thread Npt Size
2 in
Dimensions Dimension A
30 1/4 in
Dimensions Dimension B
14 1/2 in
Dimensions Dimension C
23 in
Dimensions Prefix Size
1400
Dimensions Shipping Weight
1300 lb
Dimensions Size
14 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceDrain location may differ from image shownManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
