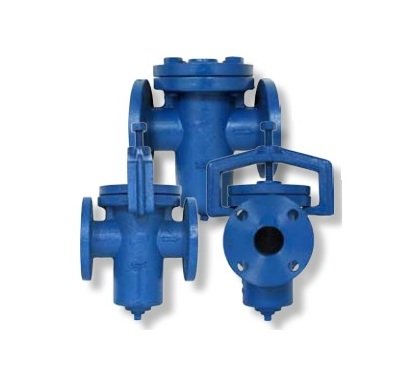

Sure Flow BF125 2 1/2" Cast Iron Basket Strainer
Sure Flow BF125 2 1/2" Cast Iron Basket Strainer
SKU:BAS-2d6176
Efficient ASME Class 125 Cast Iron Basket Strainer for industrial filtration with ASTM A126 Class B construction and ISO 9001:2008 certified.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow BF125 2 1/2" Cast Iron Basket Strainer
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow BF125 2 1/2" Cast Iron Basket Strainer
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BF125 2 1/2" Cast Iron Basket Strainer is engineered for efficiency and durability in industrial filtration. Featuring an ASME Class 125 flanged design with options for bolted or quick-release clamped cover (Model BFC), this strainer is ideal for applications requiring frequent basket clean-outs. Constructed with ASTM A126 Class B Cast Iron body and cover, it ensures robust performance. The stainless steel screen and perforated standard screen with 0.045" openings provide effective filtration. Operating at 200 psi pressure, this strainer meets ISO 9001:2008 standards for quality assurance.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel

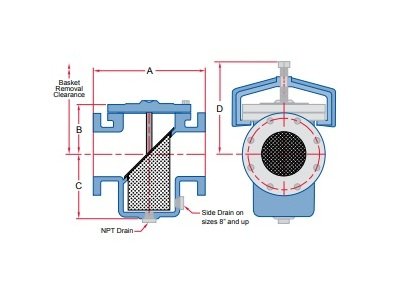

Dimensions Basket Removal Clearance
11 in
Dimensions Blow Off National Pipe Thread Npt Size
1/2 in
Dimensions Dimension A
8 1/4 in
Dimensions Dimension B
4 5/16 in
Dimensions Dimension C
5 3/8 in
Dimensions Dimension D
8 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
43 lb
Dimensions Size
2 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceDrain location may differ from image shownManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
