Sure Flow BF125 5 Inch Cast Iron Basket Strainer
Sure Flow BF125 5 Inch Cast Iron Basket Strainer
SKU:BAS-7dc298
Ensure smooth operations with the Sure Flow BF125 5 Inch Cast Iron Basket Strainer. Durable, efficient, and compliant with ISO 9001:2008 standards for optimal performance.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow BF125 5 Inch Cast Iron Basket Strainer
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow BF125 5 Inch Cast Iron Basket Strainer
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

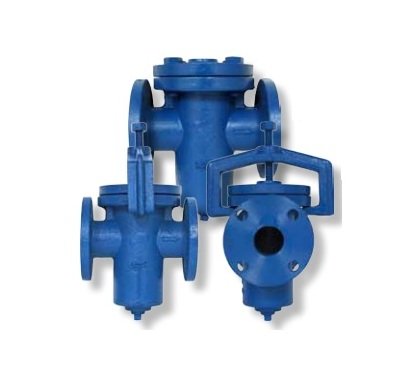

The Sure Flow BF125 5 Inch Cast Iron Basket Strainer is a robust solution for industrial applications, featuring a Class 125 ASME Flanged design with options for both bolted or quick release clamped cover. Its interchangeable spare basket reduces cleaning downtime, while differential pressure gauges ensure optimal maintenance intervals. Constructed with ASTM A126 Class B Cast Iron body and cover, and stainless steel screen, this strainer withstands pressures up to 200 psi at 150°F. With a 1/8-inch perforated standard screen and ISO 9001:2008 certification, it guarantees quality and efficiency. Ideal for industries requiring reliable filtration in demanding environments.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel

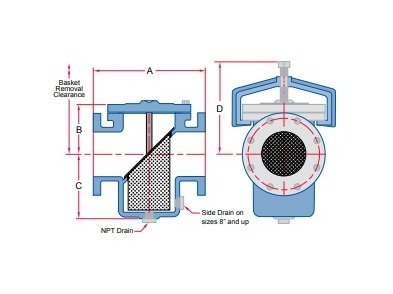

Dimensions Basket Removal Clearance
18 5/8 in
Dimensions Blow Off National Pipe Thread Npt Size
1 in
Dimensions Dimension A
13 1/8 in
Dimensions Dimension B
7 in
Dimensions Dimension C
8 in
Dimensions Dimension D
11 1/2 in
Dimensions Prefix Size
0500
Dimensions Shipping Weight
140 lb
Dimensions Size
5 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceDrain location may differ from image shownManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
