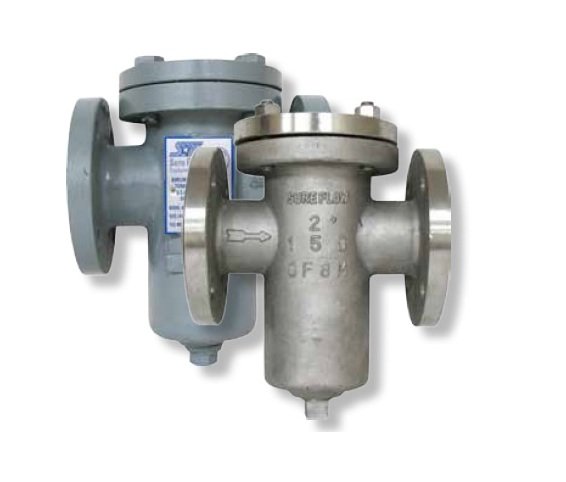

The Sure Flow BF150 2 Inch Cast Carbon Steel Basket Strainer is a robust solution for industrial filtration needs. Built with ASTM A216 Grade WCB Cast Carbon Steel body and cover, this basket strainer offers durability and reliability. It features a 3/16 inch perforated standard screen with a 0.045 inch screen opening, ensuring efficient particle capture. Operating at a pressure of 285 psi at 100°F, this strainer is ideal for water, oil, and gas applications. With ASME Section VIII compliance and ISO 9001:2008 certification, this strainer guarantees quality and performance.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Carbon Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Carbon Steel
Construction Screen Material
Cast Carbon Steel

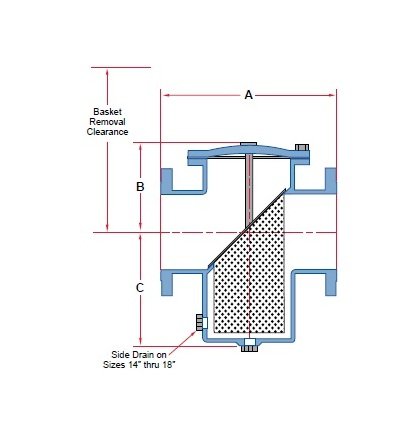

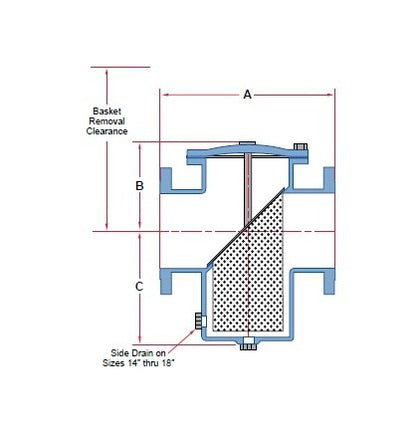

Dimensions Basket Removal Clearance
13 in
Dimensions Blow Off National Pipe Thread Npt Size
1 in
Dimensions Dimension A
8 1/8 in
Dimensions Dimension B
4 in
Dimensions Dimension C
5 3/8 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
34 lb
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceDrain location may differ from image shownASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Specifications Strainer Type
Basket
Standard Screens Perforated Standard Screen
3/16 in
Standard Screens Screen Opening
0.045 in
