Sure Flow BF150SS 1 Inch Cast 316 Stainless Steel Basket Strainer
Sure Flow BF150SS 1 Inch Cast 316 Stainless Steel Basket Strainer
SKU:BAS-2c1831
Efficiently filter particulates with Sure Flow's 1 Inch Cast 316 Stainless Steel Basket Strainer, meeting ISO 9001:2008 standards.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Sure Flow BF150SS 1 Inch Cast 316 Stainless Steel Basket Strainer
$249.99
Quantity: 1
Claim Your Seller Account
Sure Flow BF150SS 1 Inch Cast 316 Stainless Steel Basket Strainer
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

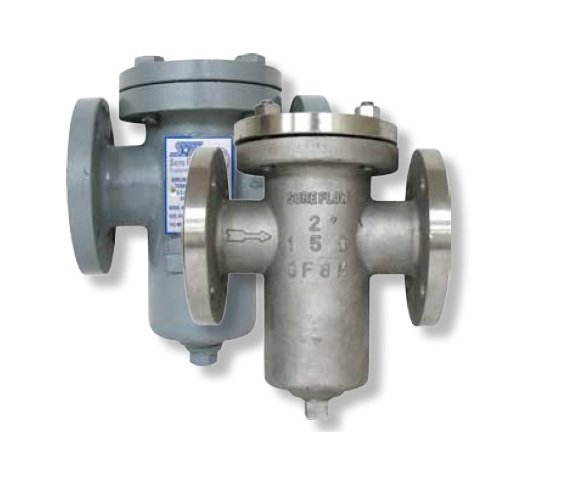

The Sure Flow BF150SS 1 Inch Cast 316 Stainless Steel Basket Strainer is designed for efficient particulate removal in industrial applications. Constructed with ASTM A351 Grade CF8M Cast 316 Stainless Steel, this basket strainer offers durability and corrosion resistance. It features a perforated standard screen with a 0.045-inch opening, ensuring effective filtration. Operating at 275 psi pressure and suitable for water, oil, and gas applications, it meets ISO 9001:2008 standards. The lifting handle allows easy basket removal for quick cleaning.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Screen Material
Stainless Steel

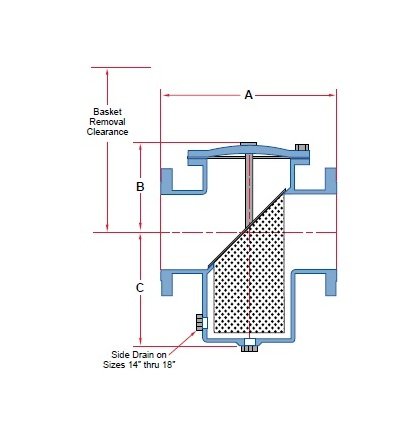

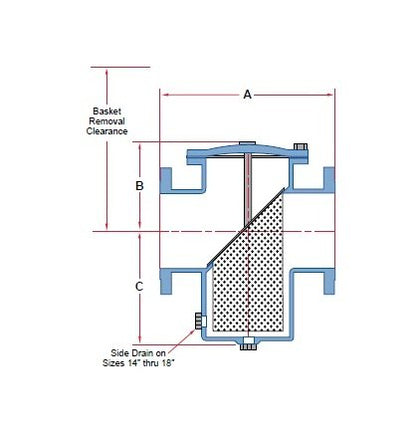

Dimensions Basket Removal Clearance
8 3/4 in
Dimensions Blow Off National Pipe Thread Npt Size
1/2 in
Dimensions Dimension A
6 1/8 in
Dimensions Dimension B
2 5/8 in
Dimensions Dimension C
3 3/4 in
Dimensions Prefix Size
0100
Dimensions Shipping Weight
16 lb
Dimensions Size
1 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceDrain location may differ from image shownASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Strainer Type
Basket
Standard Screens Perforated Standard Screen
3/16 in
Standard Screens Screen Opening
0.045 in
