Sure Flow BF150SS 2 Inch Cast 316 Stainless Steel Basket Strainer

Name: Sure Flow BF150SS 2 Inch Cast 316 Stainless Steel Basket Strainer
Brand: Sure Flow Equipment, Inc.
SKU: BAS-30e827
Price: 279.99 USD
Availability: OutOfStock

SKU:BAS-30e827

Efficient and durable 2" Cast 316 Stainless Steel Basket Strainer for industrial applications. ASME Class 150 rated, ISO 9001:2008 compliant, and corrosion-resistant.

$279.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

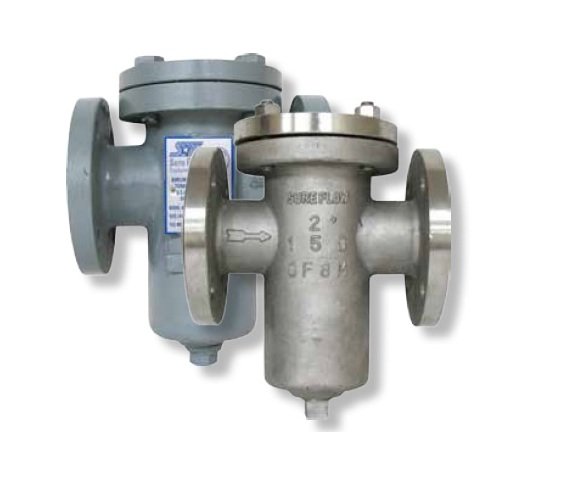

The Sure Flow BF150SS 2 Inch Cast 316 Stainless Steel Basket Strainer is designed for efficiency and durability in demanding industrial applications. Constructed with ASTM A351 Grade CF8M Cast 316 Stainless Steel, it offers exceptional corrosion resistance and longevity. This ASME Class 150 flanged basket strainer features a convenient lifting handle for easy maintenance, ensuring quick removal of captured particulates. With a pressure rating of 275 psi at 100°F, perforated standard screen, and adherence to ISO 9001:2008 standards, this basket strainer guarantees reliable performance and compliance.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel

Construction Screen Material

Stainless Steel

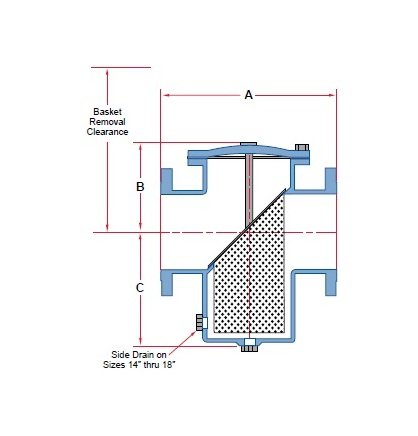

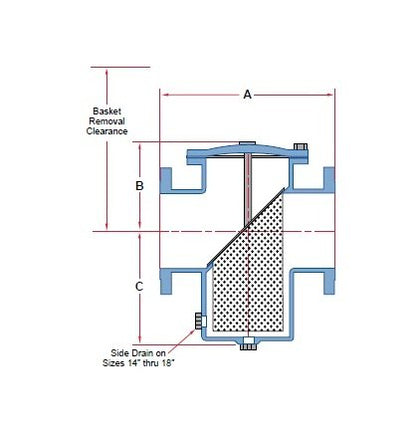

Dimensions Basket Removal Clearance

13 in

Dimensions Blow Off National Pipe Thread Npt Size

1 in

Dimensions Dimension A

8 1/8 in

Dimensions Dimension B

4 in

Dimensions Dimension C

5 3/8 in

Dimensions Prefix Size

0200

Dimensions Shipping Weight

34 lb

Dimensions Size

2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceDrain location may differ from image shownASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

275 psi

Specifications Strainer Type

Basket

Standard Screens Perforated Standard Screen

3/16 in

Standard Screens Screen Opening

0.045 in

Sure Flow BF150SS 2 Inch Cast 316 Stainless Steel Basket Strainer
