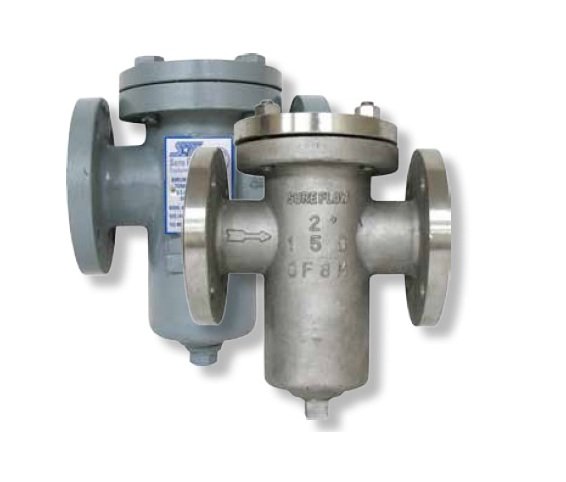

Sure Flow BF150SS 6 Inch Cast 316 Stainless Steel Basket Strainer
Sure Flow BF150SS 6 Inch Cast 316 Stainless Steel Basket Strainer
SKU:BAS-243f8f
Sure Flow BF150SS 6in Cast 316 Stainless Steel Basket Strainer for efficient, ISO-certified filtration.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow BF150SS 6 Inch Cast 316 Stainless Steel Basket Strainer
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow BF150SS 6 Inch Cast 316 Stainless Steel Basket Strainer
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid systems with the Sure Flow BF150SS 6 Inch Cast 316 Stainless Steel Basket Strainer. Crafted from ASTM A351 Grade CF8M stainless steel, this strainer ensures durability and efficient particulate filtration. Featuring a lifting handle and a blow-off NPT size of 1 inch, maintenance is hassle-free. With a pressure rating of 275 psi at 100°F, this strainer meets ISO 9001:2008 standards for quality assurance. Trust Sure Flow for reliable, compliant solutions.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Basket Removal Clearance
24 in
Dimensions Blow Off National Pipe Thread Npt Size
1 in

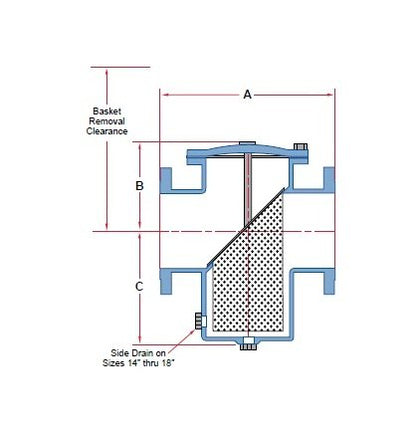

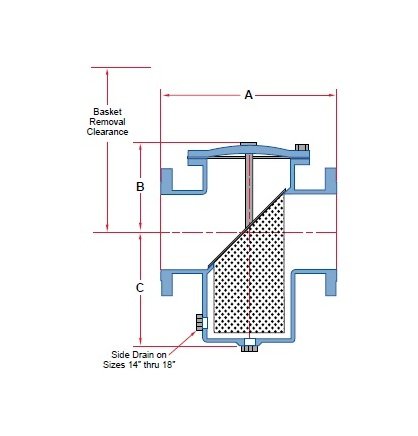

Dimensions Dimension A
14 7/8 in
Dimensions Dimension B
7 1/4 in
Dimensions Dimension C
9 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
164 lb
Dimensions Size
6 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceDrain location may differ from image shownASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Strainer Type
Basket
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
