Sure Flow BF300 2 1/2in Cast Steel Basket Strainer

Name: Sure Flow BF300 2 1/2in Cast Steel Basket Strainer
Brand: Sure Flow Equipment, Inc.
SKU: BAS-761645
Price: 349.99 USD
Availability: OutOfStock

SKU:BAS-761645

Sure Flow BF300 2.5in Cast Steel Basket Strainer, ASTM A216 Grade WCB, 740 psi, ISO 9001:2008 compliant, ideal for industrial filtration.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow BF300 2 1/2in Cast Steel Basket Strainer is a robust solution for industrial filtration needs. Constructed with ASTM A216 Grade WCB Cast Carbon Steel, this basket strainer offers durability and efficient particulate removal. With a perforated standard screen of 3/16in and a blow-off NPT size of 1in, it ensures effective filtration for water, oil, and gas applications at pressures up to 740 psi. Compliant with ISO 9001:2008 standards, this strainer guarantees quality and reliability. Ideal for steam service applications (must be specified), it combines ease of maintenance with high performance.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Carbon Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Carbon Steel

Construction Screen Material

Cast Steel

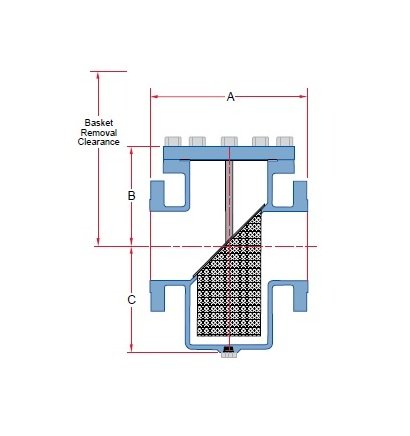

Dimensions Basket Removal Clearance

15 3/8 in

Dimensions Blow Off National Pipe Thread Npt Size

1 in

Dimensions Dimension A

8 11/16 in

Dimensions Dimension B

6 7/16 in

Dimensions Dimension C

5 3/4 in

Dimensions Prefix Size

0250

Dimensions Shipping Weight

65 lb

Dimensions Size

2 1/2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

740 psi

Specifications Strainer Type

Basket

Standard Screens Perforated Standard Screen

3/16 in

Standard Screens Screen Opening

0.045 in

Sure Flow BF300 2 1/2in Cast Steel Basket Strainer
