The Sure Flow BF300SS 2 1/2 Inch Cast 316 Stainless Steel Basket Strainer is designed to efficiently filter particulates in water, oil, and gas applications. Made from ASTM A351 Grade CF8M Cast 316 Stainless Steel, this basket strainer offers high-pressure resistance up to 720 psi at 100°F. The perforated standard screen with a 0.045-inch screen opening ensures effective filtration, while the lifting handle allows for easy removal of captured debris. Certified to ISO 9001:2008 standards, this strainer guarantees quality and reliability, making it ideal for industrial and institutional settings.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Screen Material
Stainless Steel

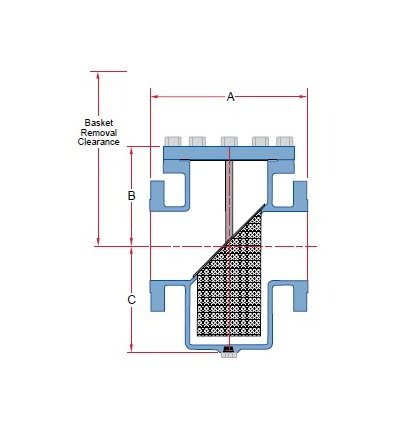

Dimensions Basket Removal Clearance
15 3/8 in
Dimensions Blow Off National Pipe Thread Npt Size
1 in
Dimensions Dimension A
8 11/16 in
Dimensions Dimension B
6 7/16 in
Dimensions Dimension C
5 3/4 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
65 lb
Dimensions Size
2 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Specifications Strainer Type
Basket
Standard Screens Perforated Standard Screen
3/16 in
Standard Screens Screen Opening
0.045 in
