Sure-Flow BF300SS 2" Cast 316 Stainless Steel Basket Strainer
Sure-Flow BF300SS 2" Cast 316 Stainless Steel Basket Strainer
SKU:BAS-c70531
Sure-Flow Class 300 ASME Flanged basket strainer in 2" Cast 316 Stainless Steel, handles up to 720 psi, ISO 9001:2008 compliant.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure-Flow BF300SS 2" Cast 316 Stainless Steel Basket Strainer
$289.99
Quantity: 1
Claim Your Seller Account
Sure-Flow BF300SS 2" Cast 316 Stainless Steel Basket Strainer
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure-Flow Class 300 ASME Flanged basket strainer, made of ASTM A351 Grade CF8M Cast 316 Stainless Steel, features a basket design for efficient particulate removal. With a lifting handle for easy maintenance and a blow-off NPT size of 1 inch, this strainer offers reliable performance at pressures up to 720 psi. It meets ISO 9001:2008 standards and is ideal for diverse industrial applications.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Screen Material
Stainless Steel

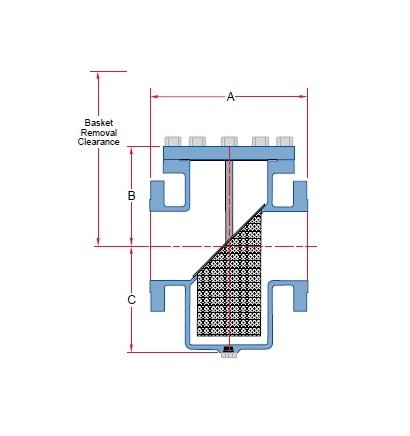

Dimensions Basket Removal Clearance
13 1/4 in
Dimensions Blow Off National Pipe Thread Npt Size
1 in
Dimensions Dimension A
8 1/2 in
Dimensions Dimension B
5 7/16 in
Dimensions Dimension C
5 3/8 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
45 lb
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Specifications Strainer Type
Basket
Standard Screens Perforated Standard Screen
3/16 in
Standard Screens Screen Opening
0.045 in
