The Sure Flow BF300SS 4 Inch Cast 316 Stainless Steel Basket Strainer is a reliable solution for filtering particulates in water, oil, and gas applications. Constructed with ASTM A351 Grade CF8M Cast 316 Stainless Steel, this basket strainer ensures durability and optimal performance. With a lifting handle for easy maintenance, a blow-off NPT size of 1 inch, and operating pressures up to 720 psi at 100°F, this strainer offers efficient particle capture and removal. Meets ISO 9001:2008 standards.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Screen Material
Stainless Steel

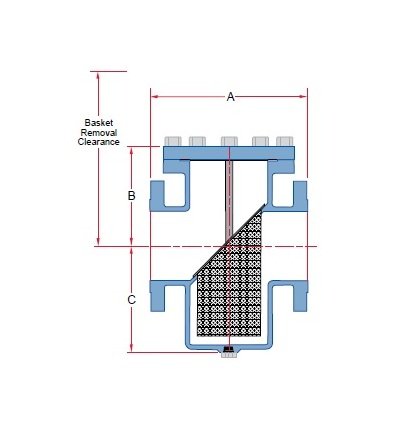

Dimensions Basket Removal Clearance
21 in
Dimensions Blow Off National Pipe Thread Npt Size
1 in
Dimensions Dimension A
11 3/4 in
Dimensions Dimension B
8 3/16 in
Dimensions Dimension C
8 3/8 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
135 lb
Dimensions Size
4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Specifications Strainer Type
Basket
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
