Sure Flow BF300SS 8-inch Cast 316 Stainless Steel Basket Strainer
Sure Flow BF300SS 8-inch Cast 316 Stainless Steel Basket Strainer
SKU:BAS-dce6d3
Sure Flow BF300SS 8-inch Cast 316 Stainless Steel Basket Strainer - Durable, efficient filtration for industrial applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Sure Flow BF300SS 8-inch Cast 316 Stainless Steel Basket Strainer
$699.99
Quantity: 1
Claim Your Seller Account
Sure Flow BF300SS 8-inch Cast 316 Stainless Steel Basket Strainer
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BF300SS 8-inch Cast 316 Stainless Steel Basket Strainer is a reliable filtration solution designed for industrial applications. Crafted from ASTM A351 Grade CF8M Cast 316 Stainless Steel, this basket strainer offers exceptional durability and corrosion resistance. It features a 1/8-inch perforated standard screen with a 0.125-inch screen opening, ensuring efficient particle capture. Operating at up to 720 psi pressure for water, oil, and gas applications, this ASME Class 300 strainer meets ISO 9001:2008 standards. With a convenient lifting handle for easy maintenance, this basket strainer is a vital component for fluid filtration systems.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Screen Material
Stainless Steel

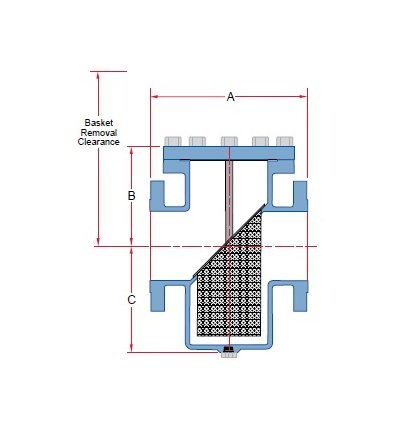

Dimensions Basket Removal Clearance
29 1/8 in
Dimensions Blow Off National Pipe Thread Npt Size
1 in
Dimensions Dimension A
18 1/8 in
Dimensions Dimension B
11 5/8 in
Dimensions Dimension C
12 1/4 in
Dimensions Prefix Size
0800
Dimensions Shipping Weight
440 lb
Dimensions Size
8 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Specifications Strainer Type
Basket
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
