The Sure Flow BFC125 12-Inch Quick Release Cast Iron Basket Strainer is a top-of-the-line solution for industrial applications requiring frequent basket clean-outs. Crafted from ASTM A126 Class B Cast Iron, this ASME Class 125 strainer offers exceptional durability and performance. Its quick-release clamped cover design simplifies maintenance, enabling quick access to the stainless steel screen. With operating pressures up to 50 psi at 150°F, this strainer ensures reliable filtration in various conditions. Measuring 26 1/4" in Dimension A and weighing 820 lb, it's a robust choice for demanding environments.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Basket Removal Clearance
37 3/4 in
Dimensions Blow Off National Pipe Thread Npt Size
1 in

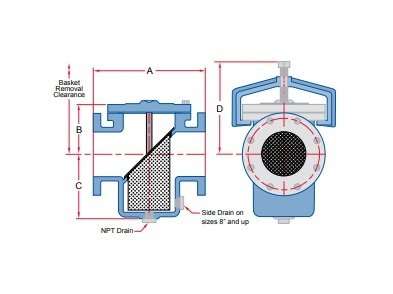

Dimensions Dimension A
26 1/4 in
Dimensions Dimension B
13 1/8 in
Dimensions Dimension C
16 3/8 in
Dimensions Dimension D
17 1/2 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
820 lb
Dimensions Size
12 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceDrain location may differ from image shownManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
50 psi
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
