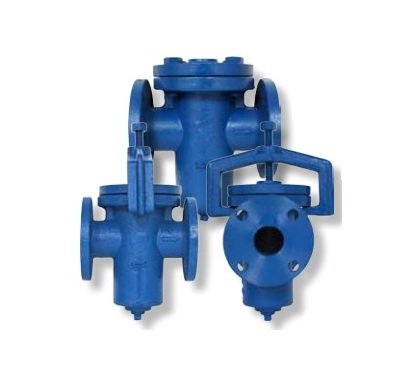

Sure Flow BFC125 5 Inch Quick Release Clamp Cast Iron Basket Strainer
Sure Flow BFC125 5 Inch Quick Release Clamp Cast Iron Basket Strainer
SKU:BAS-6734ca
Sure Flow BFC125 5in Quick Release Clamp Cast Iron Basket Strainer for efficient maintenance. ASTM A126 Class B Cast Iron body & cover. Ideal for frequent clean-outs.
Regular price
$569.99
Regular price
Sale price
$569.99
Unit price
per
Initiate Order
Sure Flow BFC125 5 Inch Quick Release Clamp Cast Iron Basket Strainer
$569.99
Quantity: 1
Claim Your Seller Account
Sure Flow BFC125 5 Inch Quick Release Clamp Cast Iron Basket Strainer
$569.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BFC125 5 Inch Quick Release Clamp Cover Cast Iron Basket Strainer is a reliable solution for applications requiring frequent basket clean-outs. This ASME Class 125 strainer features a quick release clamped cover for easy access. With spare, clean baskets available, maintenance time is reduced, ensuring maximum on-stream time. Constructed with ASTM A126 Class B Cast Iron body and cover materials, this strainer is built to handle operating pressures up to 50 psi at 150°F. The stainless steel screen and perforated standard screen meet international quality standards, including ISO 9001:2008 certification.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel

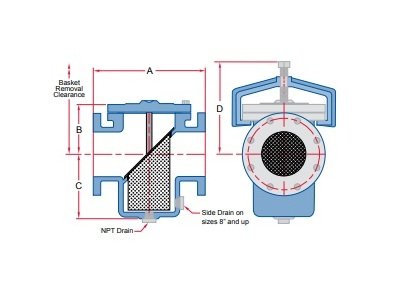

Dimensions Basket Removal Clearance
18 5/8 in
Dimensions Blow Off National Pipe Thread Npt Size
1 in
Dimensions Dimension A
13 1/8 in
Dimensions Dimension B
7 in
Dimensions Dimension C
8 in
Dimensions Dimension D
11 1/2 in
Dimensions Prefix Size
0500
Dimensions Shipping Weight
140 lb
Dimensions Size
5 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceDrain location may differ from image shownManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
50 psi
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
